Home >> Chevrolet >> 2018 >> Malibu LS >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Wiring Schematics And Wiring Harness Routing Diagrams >> Ground Distribution Wiring Schematics >> G201

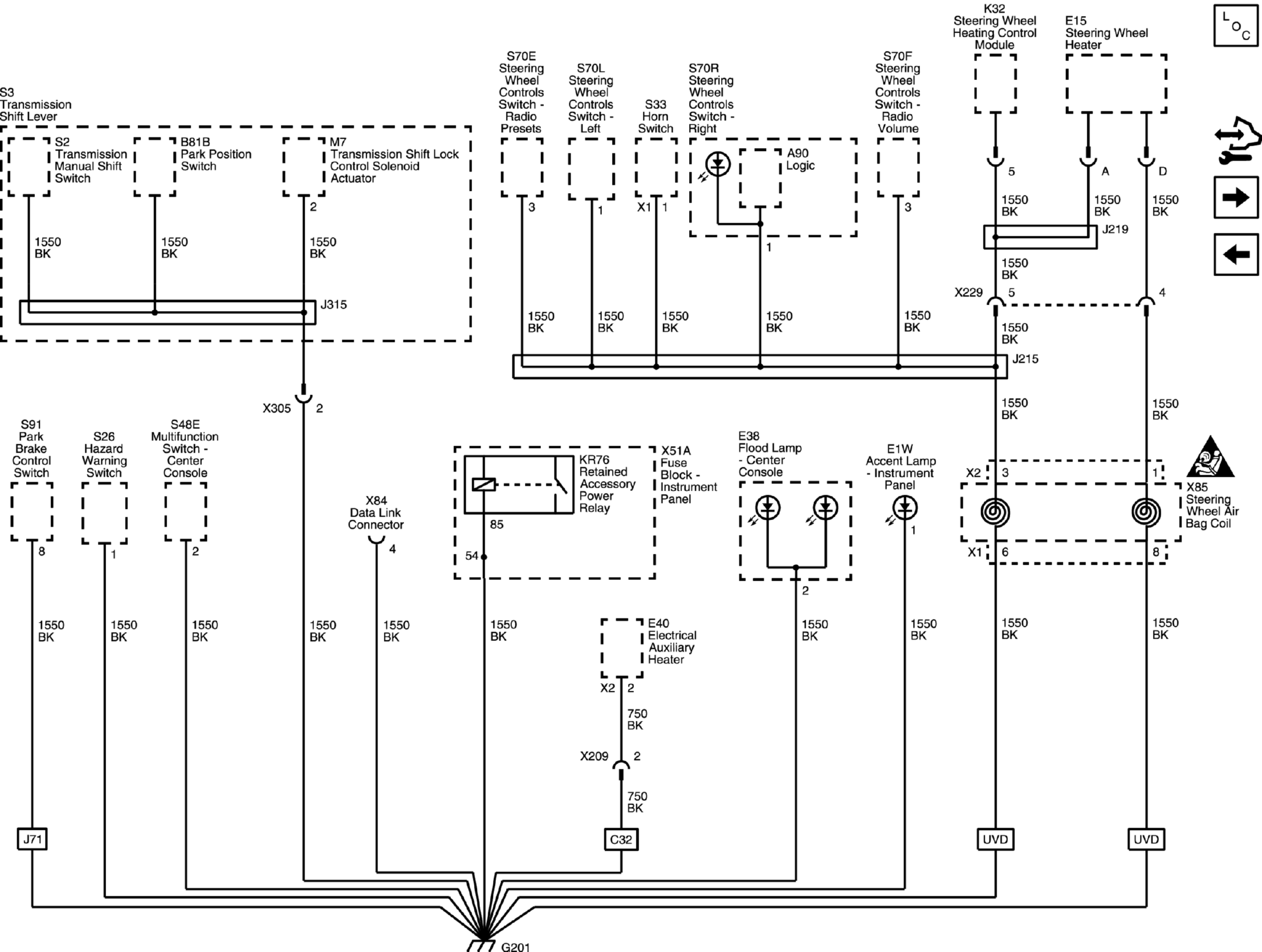

Ground Distribution Wiring Schematics: G201

GM4632388Courtesy of GENERAL MOTORS COMPANY
