X50A Fuse Block - Underhood X1
 Courtesy of GENERAL MOTORS COMPANY
|

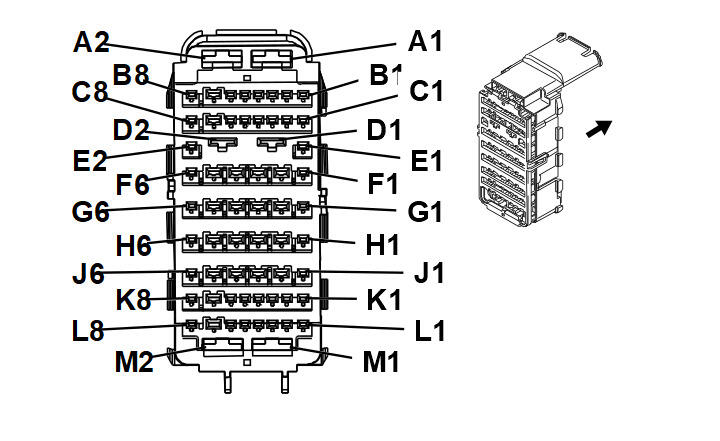

Connector Part Information
- Harness Type: Body
- OEM Connector: 33155923
- Service Connector: 19352216
- Description: 64-Way F 1.5, 2.8 OCS Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13578927 |
J-35616-22 (RD) |
J-38125-11A |
7116-3250 |
Yazaki 10 |
G |
3 |
| II |
13578928 |
J-35616-42 (RD) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13582322 |
J-35616-4A (PU) |
J-38125-11A |
7116-4110-02 |
Yazaki 9 |
E |
C |
| IV |
19301752 |
J-35616-35 (VT) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| V |
19301761 |
J-35616-35 (VT) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| VI |
19301767 |
J-35616-14 (GN) |
J-38125-557 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A1 - B4 |
- |
- |
- |
Not Occupied |
- |
- |
| B5 |
0.5 |
BU/YE |
6795 |
Lift Glass/Rear Compartment Lid Motor Release Control 2 |
VI |
- |
| B6 - B7 |
- |
- |
- |
Not Occupied |
- |
- |
| B8 |
0.35 |
GY/YE |
6188 |
Lift Glass/Rear Compartment Lid Motor Release Control |
VI |
- |
| C1 - C4 |
- |
- |
- |
Not Occupied |
- |
- |
| C5 |
0.35 |
GY |
91 |
Windshield Wiper Motor Relay Coil Control |
VI |
- |
| C6 - C8 |
- |
- |
- |
Not Occupied |
- |
- |
| D1 |
2.5 |
BN/VT |
293 |
Rear Defog Element Control |
II |
- |
| D2 |
- |
- |
- |
Not Occupied |
- |
- |
| E1 |
0.35 |
BN/VT |
193 |
Rear Defog Relay Control |
VI |
- |
| E2 |
0.35 |
RD/WH |
640 |
Battery Positive Voltage |
VI |
- |
| F1 - F3 |
- |
- |
- |
Not Occupied |
- |
- |
| F4 |
0.35 |
BN/YE |
2267 |
Mirror Heating Element Control |
V |
- |
| F5 |
1.5 |
BK |
1350 |
Ground |
IV |
- |
| F6 - G1 |
- |
- |
- |
Not Occupied |
- |
- |
| G2 |
2.5 |
RD/GY |
3540 |
Battery Positive Voltage |
IV |
- |
| G3 |
0.35 |
RD/WH |
1040 |
Battery Positive Voltage |
V |
- |
| G4 |
- |
- |
- |
Not Occupied |
- |
- |
| G5 |
0.35 |
WH/VT |
860 |
Front Windshield Wiper Switch High Signal |
V |
- |
| G6 |
- |
- |
- |
Not Occupied |
- |
- |
| H1 |
0.5 |
RD/BN |
440 |
Battery Positive Voltage |
VI |
- |
| H2 |
0.75 |
RD/GN |
6140 |
Battery Positive Voltage |
V |
- |
| H3 |
0.5 |
RD/WH |
5740 |
Battery Positive Voltage |
III |
- |
| H4 |
0.75 |
RD/WH |
4740 |
Battery Positive Voltage |
V |
- |
| H5 |
2.5 |
RD/VT |
2640 |
Battery Positive Voltage |
IV |
- |
| H6 |
0.35 |
BU |
45 |
Park Lamp Relay Control |
VI |
- |
| J1 |
- |
- |
- |
Not Occupied |
- |
- |
| J2 |
0.75 |
RD/BU |
5240 |
Battery Positive Voltage |
V |
- |
| J3 |
0.5 |
RD/BN |
2940 |
Battery Positive Voltage |
V |
- |
| J4 |
0.75 |
RD/GY |
4840 |
Battery Positive Voltage |
V |
- |
| J5 |
1.5 |
YE/BN |
95 |
Windshield Wiper Motor Low Speed Control |
IV |
- |
| J6 - K5 |
- |
- |
- |
Not Occupied |
- |
- |
| K6 |
0.35 |
BN/GY |
2268 |
Windshield Washer Relay Control |
VI |
- |
| K7 |
1.5 |
WH |
92 |
Windshield Wiper Motor High Speed Control |
IV |
- |
| K8 - L1 |
- |
- |
- |
Not Occupied |
- |
- |
| L2 |
0.35 |
BN/WH |
28 |
Horn Relay Control |
VI |
- |
| L3 |
- |
- |
- |
Not Occupied |
- |
- |
| L4 |
0.35 |
BN/VT |
1969 |
Headlamp High Beam Relay Control |
VI |
- |
| L5 - L7 |
- |
- |
- |
Not Occupied |
- |
- |
| L8 |
0.35 |
RD/WH |
1040 |
Battery Positive Voltage |
VI |
- |
| M1 |
4 |
RD/YE |
1142 |
Battery Positive Voltage |
I |
- |
| M2 |
4 |
RD/BU |
1542 |
Battery Positive Voltage |
I |
- |
