Front Seat Heater Vent Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

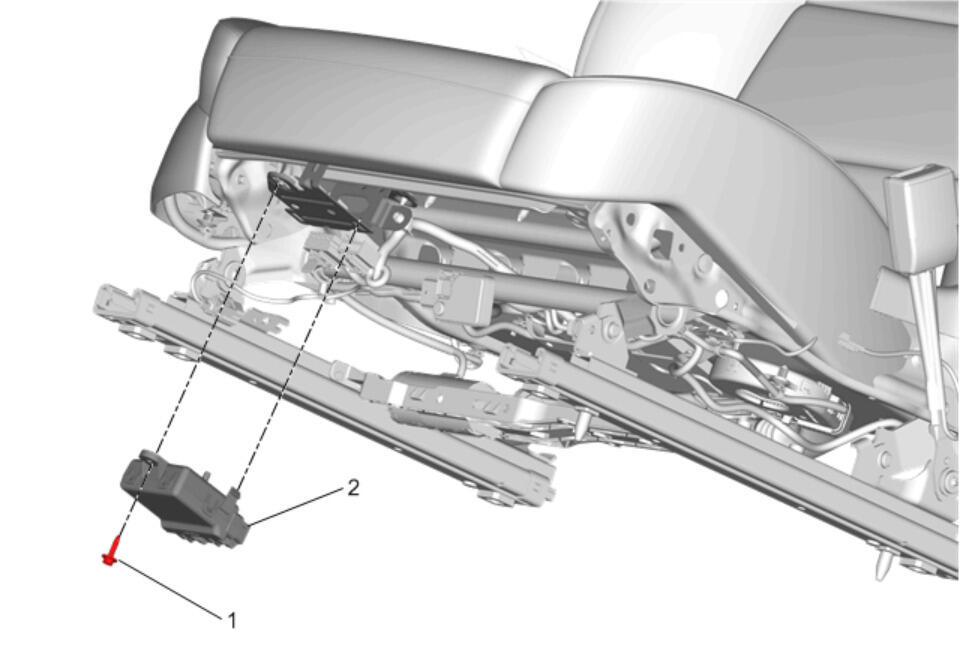

Callout	Component Name
Preliminary Procedure Driver or Passenger Seat Removal and Installation
1	Front Seat Heater Vent Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Heater Vent Control Module Procedure Release the retaining tabs. Disconnect the electrical connector.

Callout

Component Name

Front Seat Heater Vent Control Module Fastener

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Seat Heater Vent Control Module

Procedure
