Front Bumper Shutter Replacement (Upper)

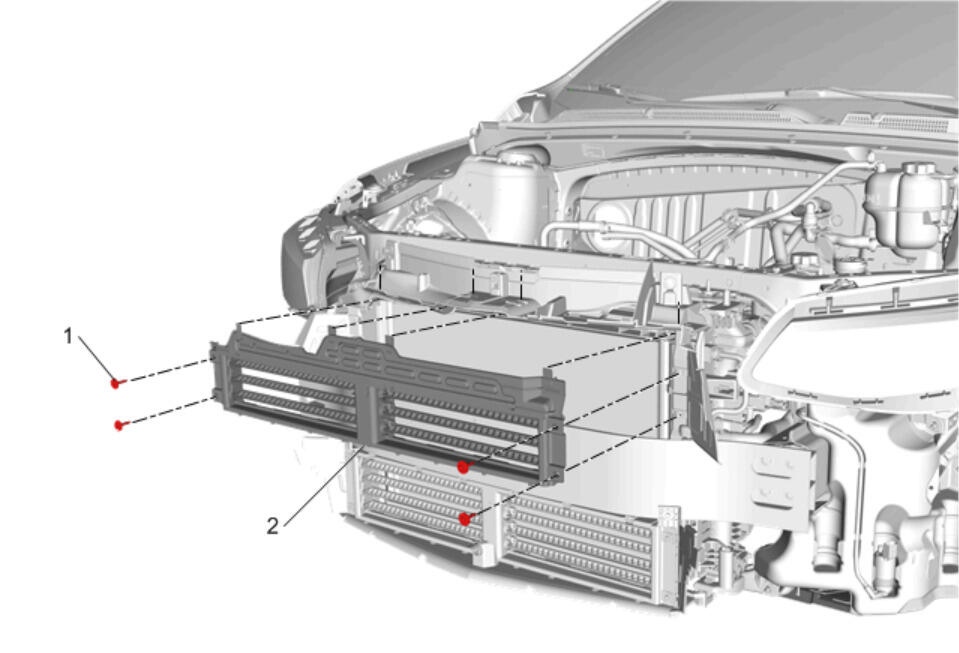

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement
1	Front Bumper Shutter Bolt [4x] CAUTION: Refer to FASTENER CAUTION . Tighten 2.5 N.m (22 lb in)
2	Front Bumper Shutter Procedure Disconnect the electrical connector. Release the retaining tabs. Transfer components as necessary.

Callout

Component Name

Front Bumper Shutter Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Bumper Shutter

Procedure
