Front Bumper Lower Fascia Replacement

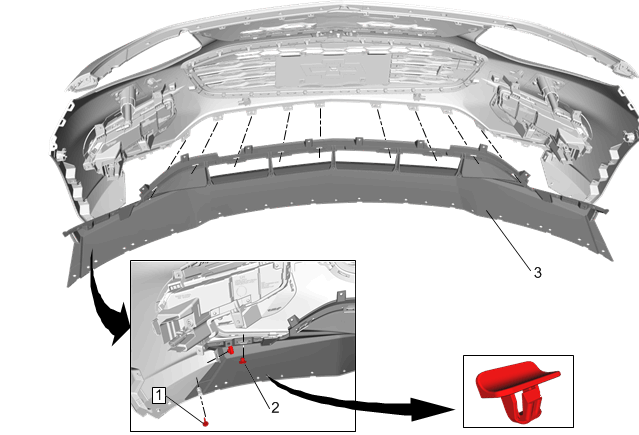

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Front Bumper Lower Fascia Bolt[2x] CAUTION: Refer to FASTENER CAUTION . Tighten 2.5 N.m (22 lb in)
2	Front Bumper Lower Fascia Clip [4x]
3	Front Bumper Lower Fascia Procedure Reposition the wiring harness. Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the fascia. Transfer components as necessary.
