Front Bumper Fascia Support Brace Replacement

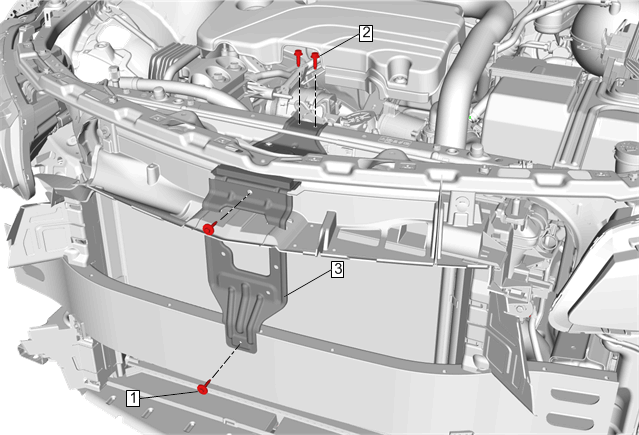

| Callout | Component Name |
|---|---|
|
Preliminary Procedures |
|
| 1 | Front Bumper Fascia Support Brace Bolt[2x]
CAUTION:
Refer to FASTENER CAUTION . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Bumper Fascia Center Support Bolt[2x] Tighten 9 N.m (80 lb in) |
| 3 | Front Bumper Fascia Support Brace Procedure Slide the front bumper fascia support brace from the radiator air upper deflector. |
