Front Bumper Energy Absorber Replacement

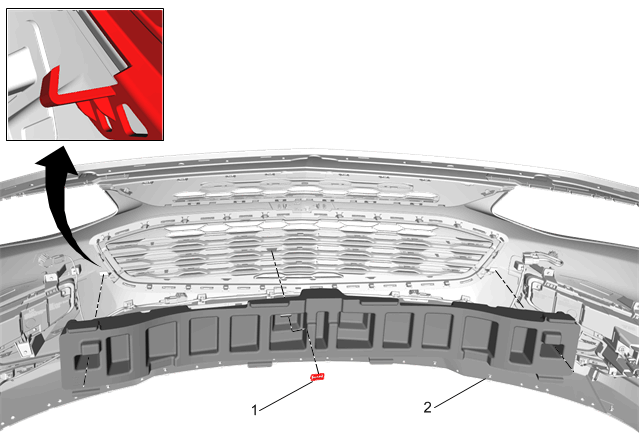

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement Reposition the wiring harness.
1	Front Bumper Fascia Retainer
2	Front Bumper Fascia Energy Absorber Procedure Release the two retainers on each side of the front bumper fascia absorber.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Retainer

Front Bumper Fascia Energy Absorber
Procedure
Release the two retainers on each side of the front bumper fascia absorber.
