Windshield Multifunction Sensor Mount Bracket Cover Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement |
|

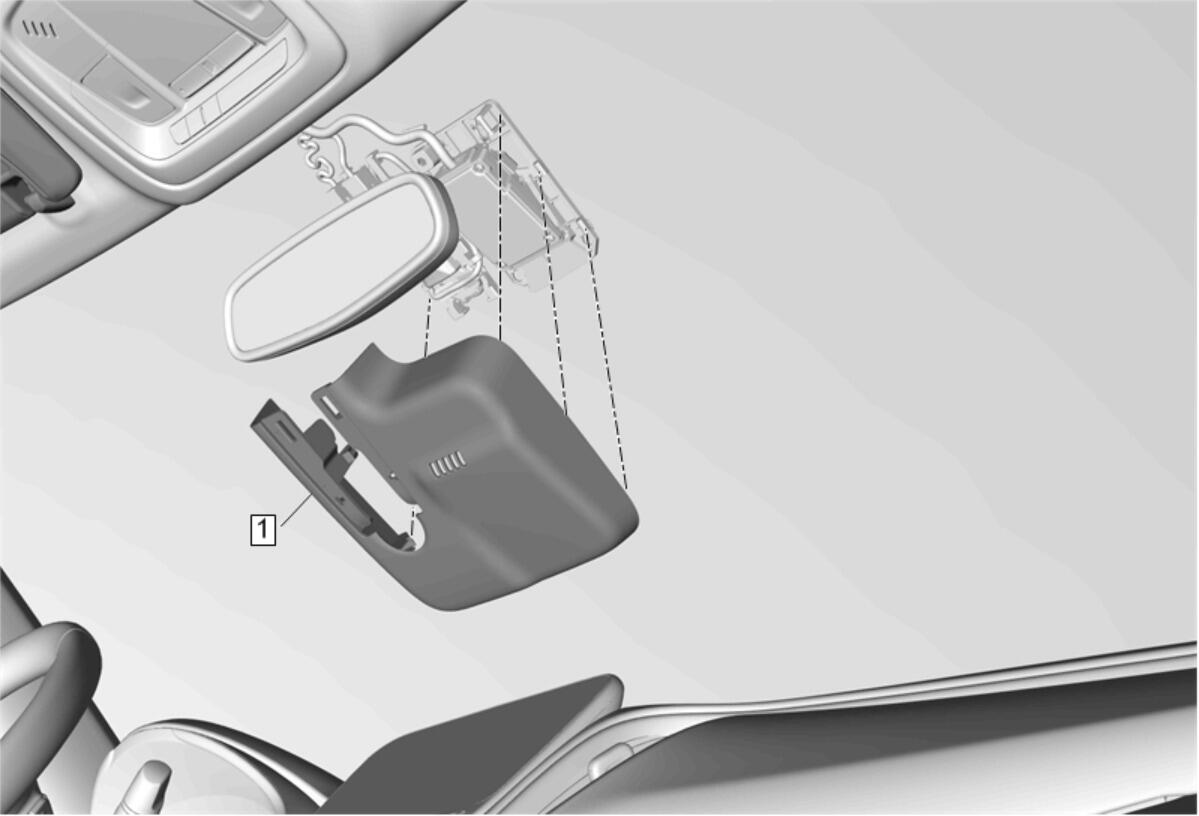

| 1 | Windshield Multifunction Sensor Mount Bracket Cover Procedure Slide downward to remove cover from mirror.
NOTE:
The windshield multifunction sensor mount bracket cover and cover insert has to be removed from the windshield as a single unit to prevent damage to mirror. |
