Transmission Fluid Cooler Outlet Pipe Replacement (LCV)

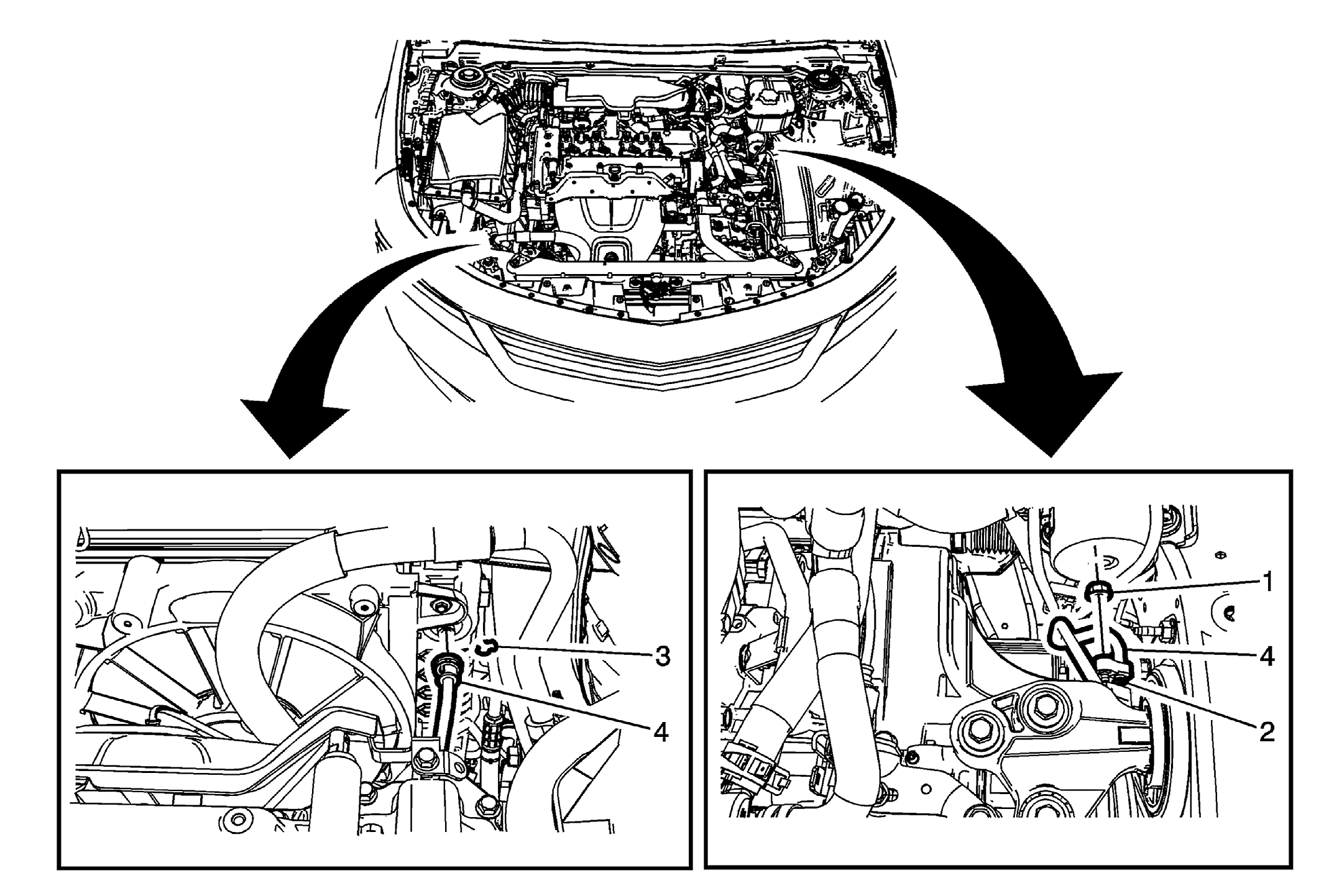

Callout	Component Name
Preliminary Procedures Remove the battery tray. Refer to Battery Tray Replacement . Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement . Cap the fittings and plug the holes when removing the transmission fluid cooler outlet pipe. Place a drain pan under the transmission fluid cooler outlet pipe.
1	Transmission Fluid Cooler Outlet Pipe Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Transmission Fluid Cooler Outlet Pipe Seal Procedure Remove and discard the sealing washer and replace with a NEW sealing washer.
3	Transmission Fluid Cooler Outlet Pipe Retaining Clip Procedure Remove the transmission fluid cooler outlet pipe retaining clip. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
4	Transmission Fluid Cooler Outlet Pipe Procedure Note the routing of the transmission fluid cooler outlet pipe to ensure proper installation. Remove the transmission fluid cooler outlet pipe from the retaining clips securing the pipe to the transmission and fan shroud. Inspect the transmission fluid level. Refer to Transmission Fluid Level and Condition Check .
