Steering Gear Heat Shield Replacement (NJ1)

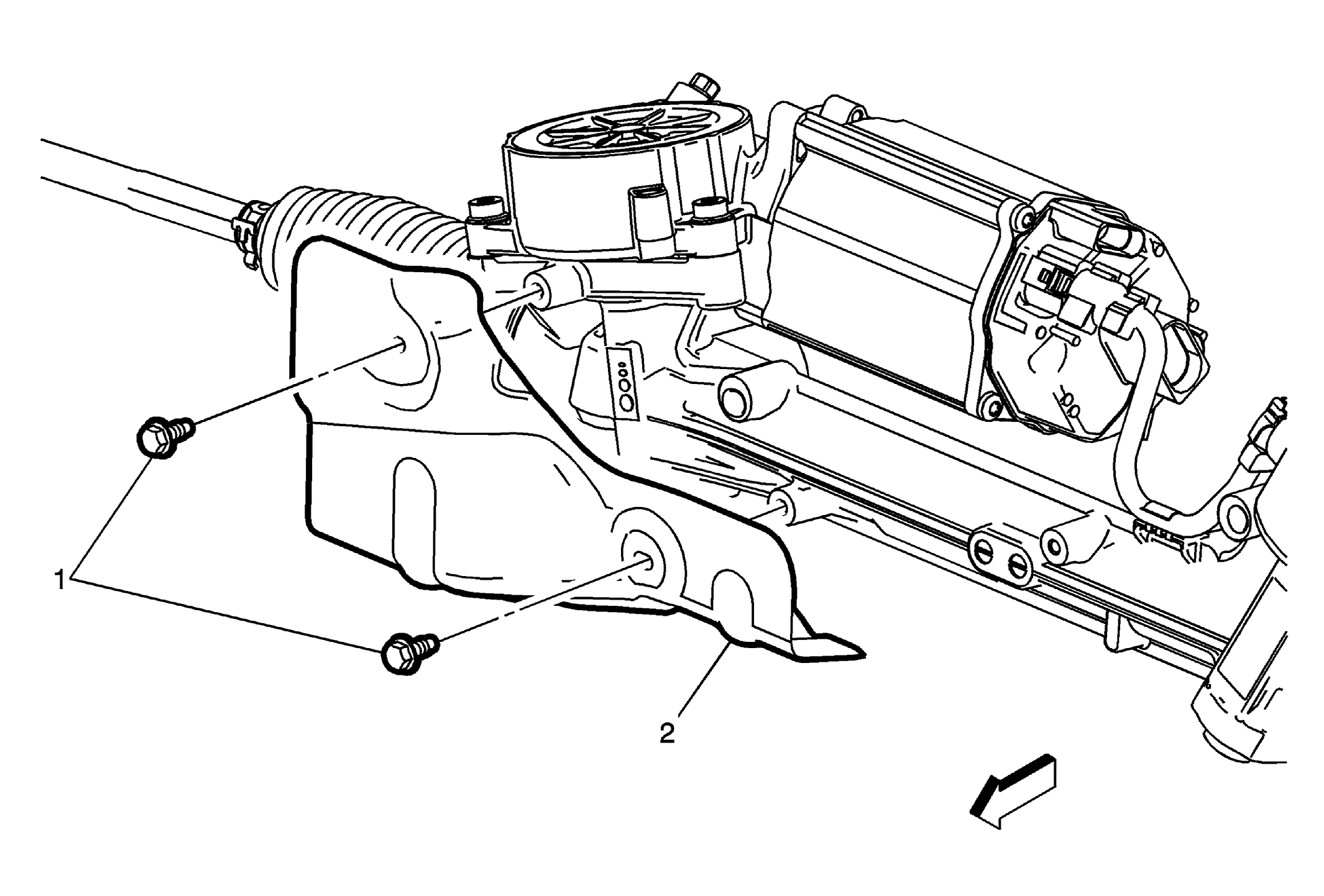

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Steering Gear Heat Shield Bolt[2x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Steering Gear Heat Shield
