Preliminary Procedures
- Drain the cooling system. Refer to Cooling System Draining and Filling (Vacuum and Fill)Cooling System Draining and Filling (Static)
.
- Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement
.
- Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement
.
|

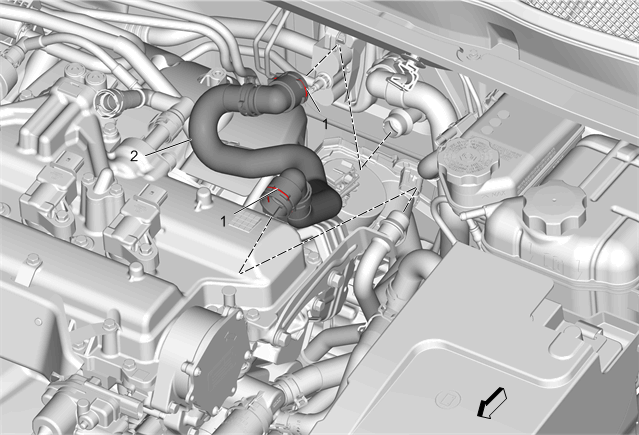

| 1 |
Heater Outlet Hose Connector Retaining Clip (Qty: 2)
Procedure
Release the heater outlet hose connector retaining clips and remove the heater outlet hose. |
| 2 |
Heater Outlet Hose Procedure
- Fill the engine cooling system. Refer to Cooling System Draining and Filling (Vacuum and Fill)Cooling System Draining and Filling (Static)
.
- Check the cooling system for leaks. Refer to Cooling System Leak Testing
.
|
