Heater Core Replacement

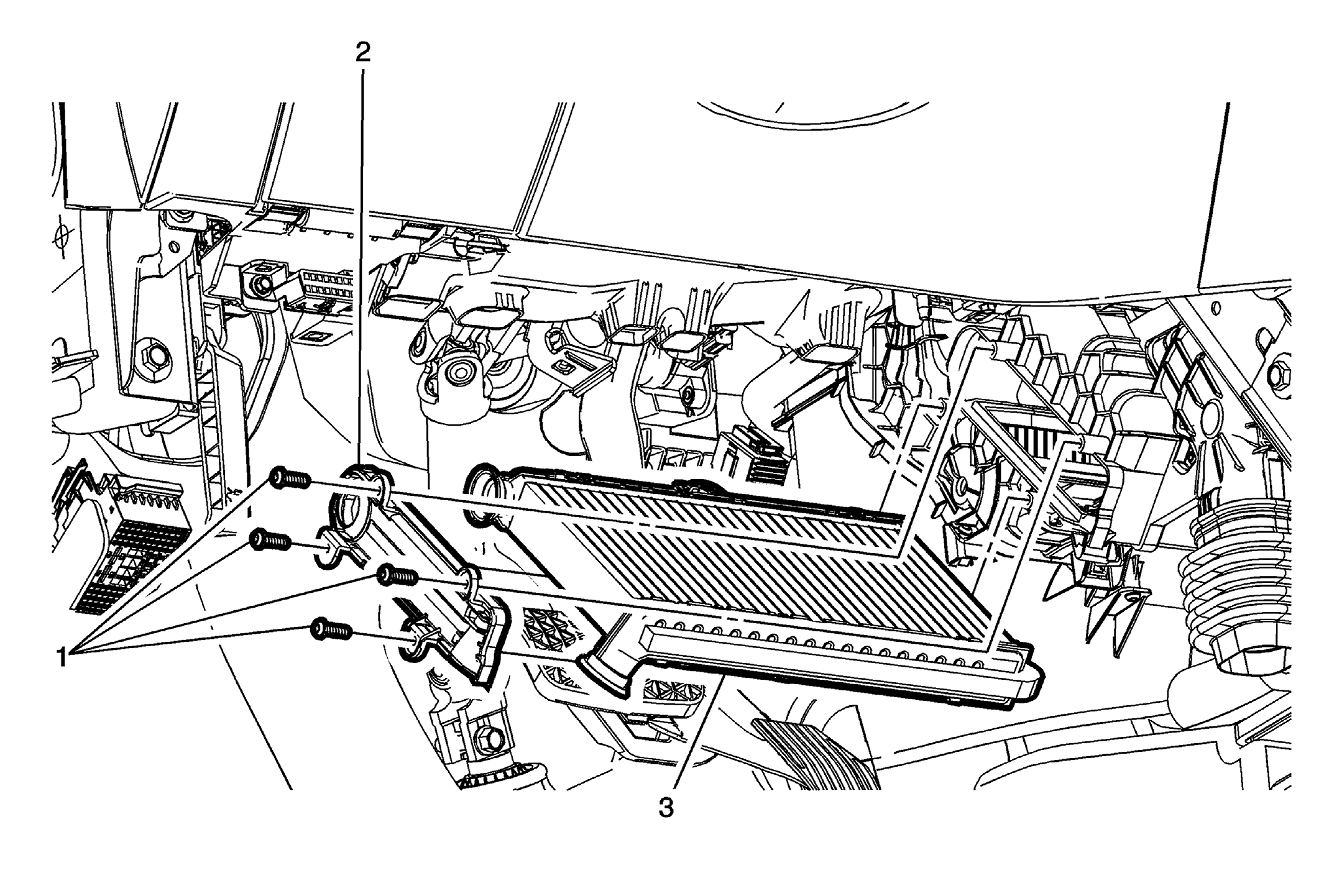

GM2911526
Call out Component Name

Preliminary Procedures

  1. Cooling System Draining and Filling (Vacuum and Fill)Cooling System Draining and Filling (Static)
  2. Floor Front Air Outlet Duct Replacement - Left Side
  3. Front Floor Console Extension Replacement - Left Side
  4. Reposition the carpet to access the heater core tubes.
  5. Heater Tube Replacement
CAUTION:

Refer to HVAC Module Drain Tube Caution .
1 Heater and Air Conditioning Evaporator Module Cover Fastener (QTY: 4)
CAUTION:

Refer to Fastener Caution .
2 Heater And Air Conditioning Evaporator Module Cover
3 Heater Core

Procedures

  1. Level the engine coolant to the proper level. Refer to Cooling System Draining and Filling (Vacuum and Fill)Cooling System Draining and Filling (Static) .
  2. Inspect the engine cooling system for leaks.
