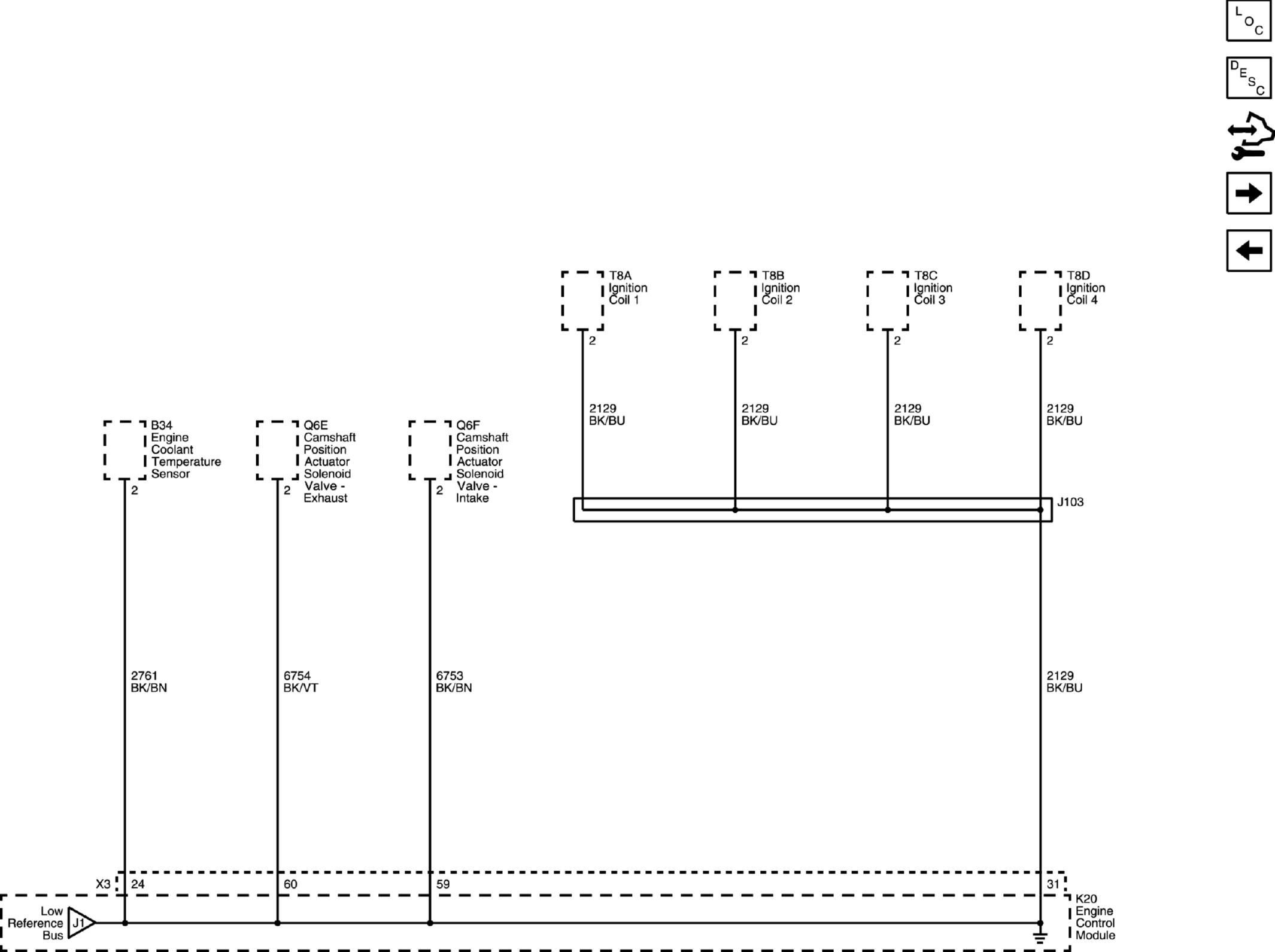

Low Reference Bus (3 of 3)

WARNING: This page is about a different variant/trim than selected.

GM4654925
