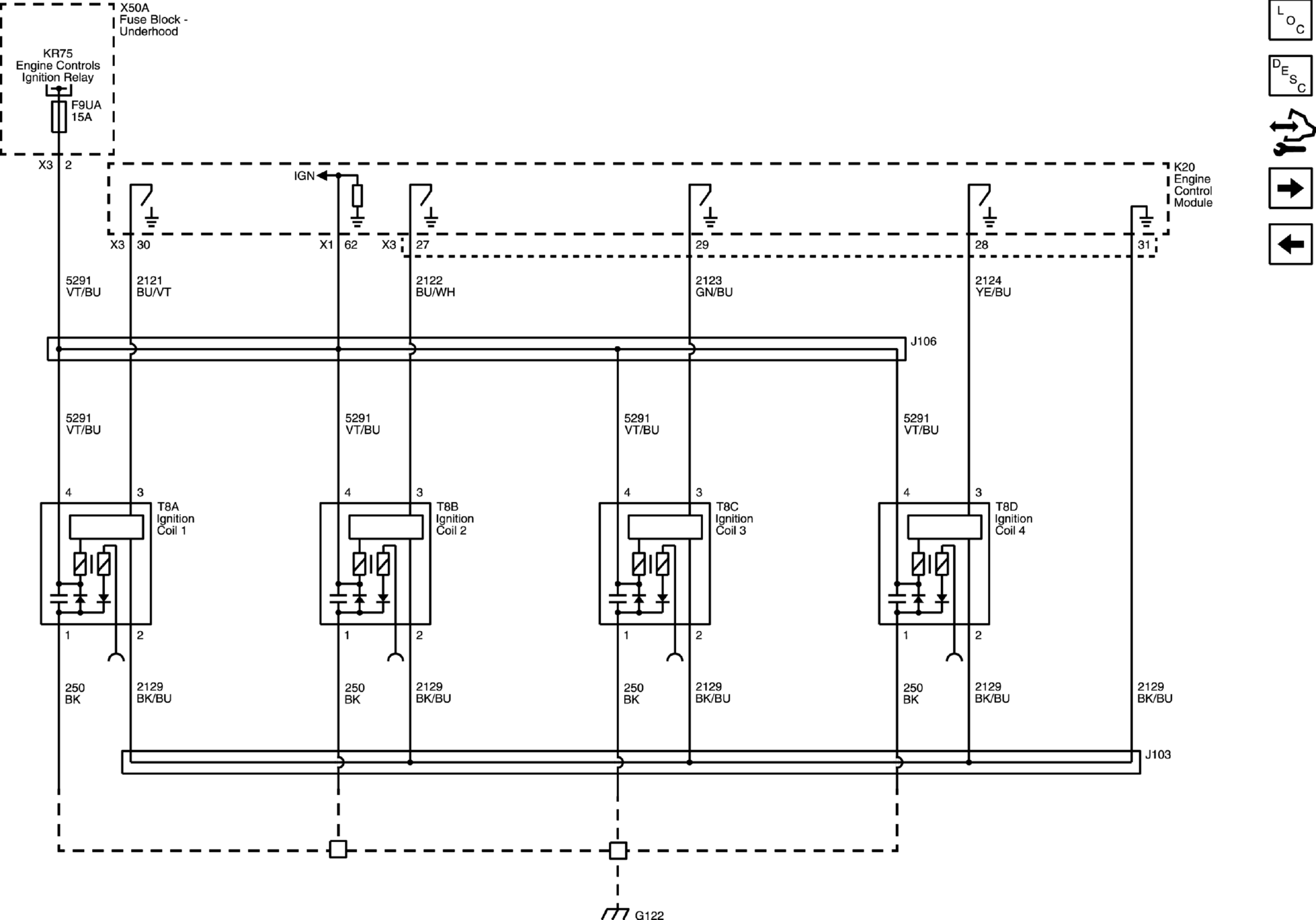

Ignition Controls - Ignition System

WARNING: This page is about a different variant/trim than selected.

GM4654933
