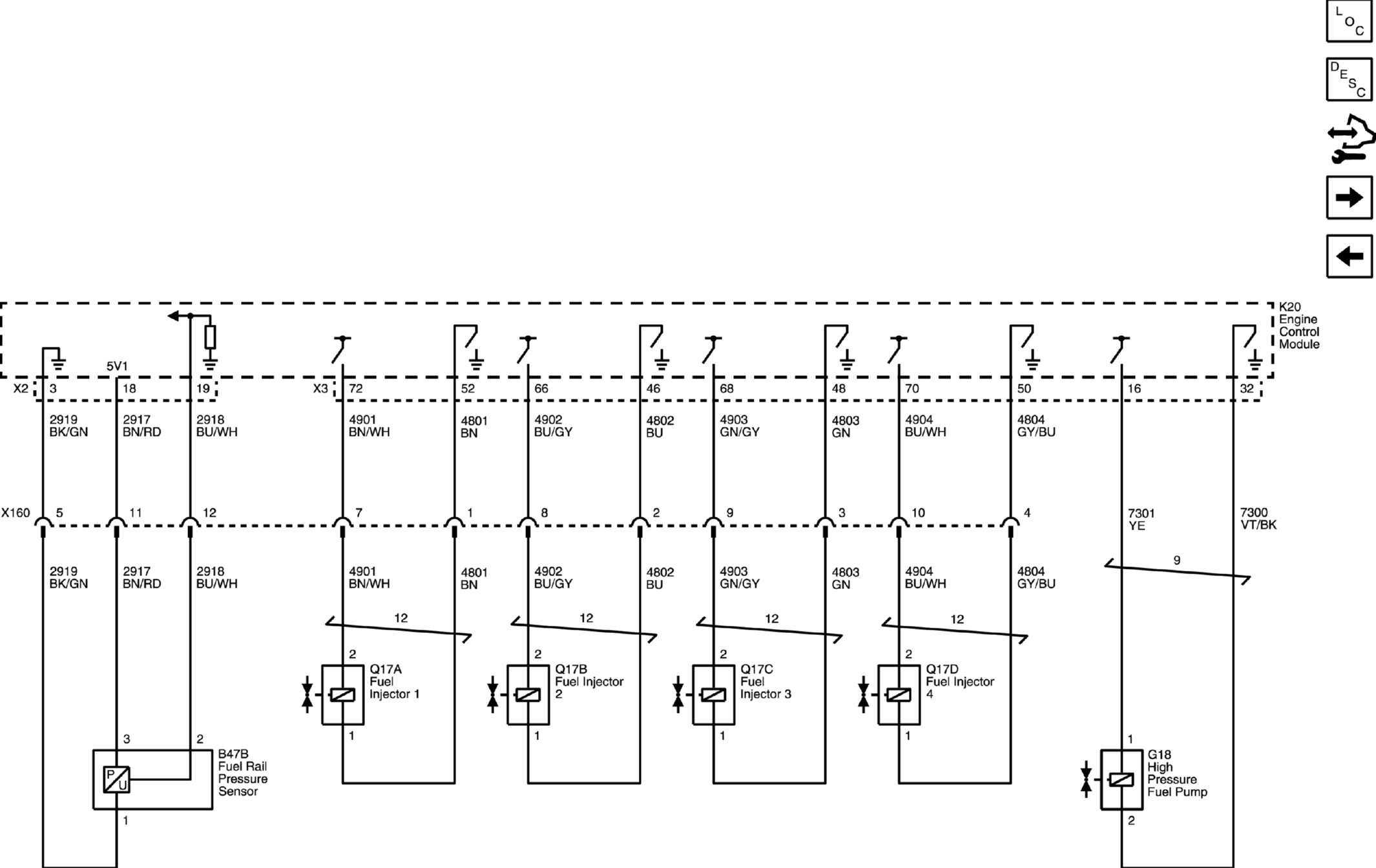

Fuel Controls - Injectors and High Pressure

WARNING: This page is about a different variant/trim than selected.

GM4654936
