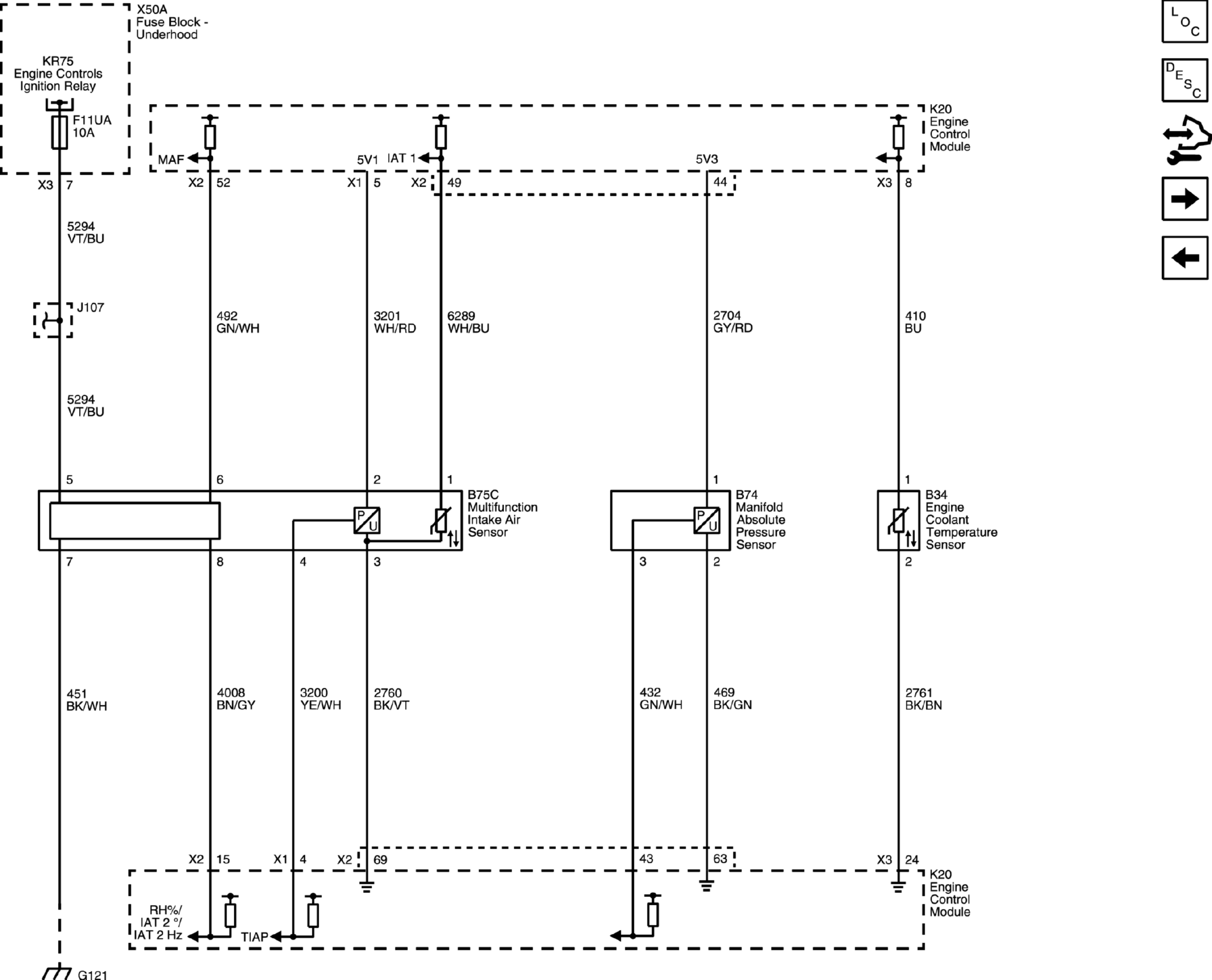

Engine Data Sensors - Pressure and Temperature

WARNING: This page is about a different variant/trim than selected.

GM4654927
