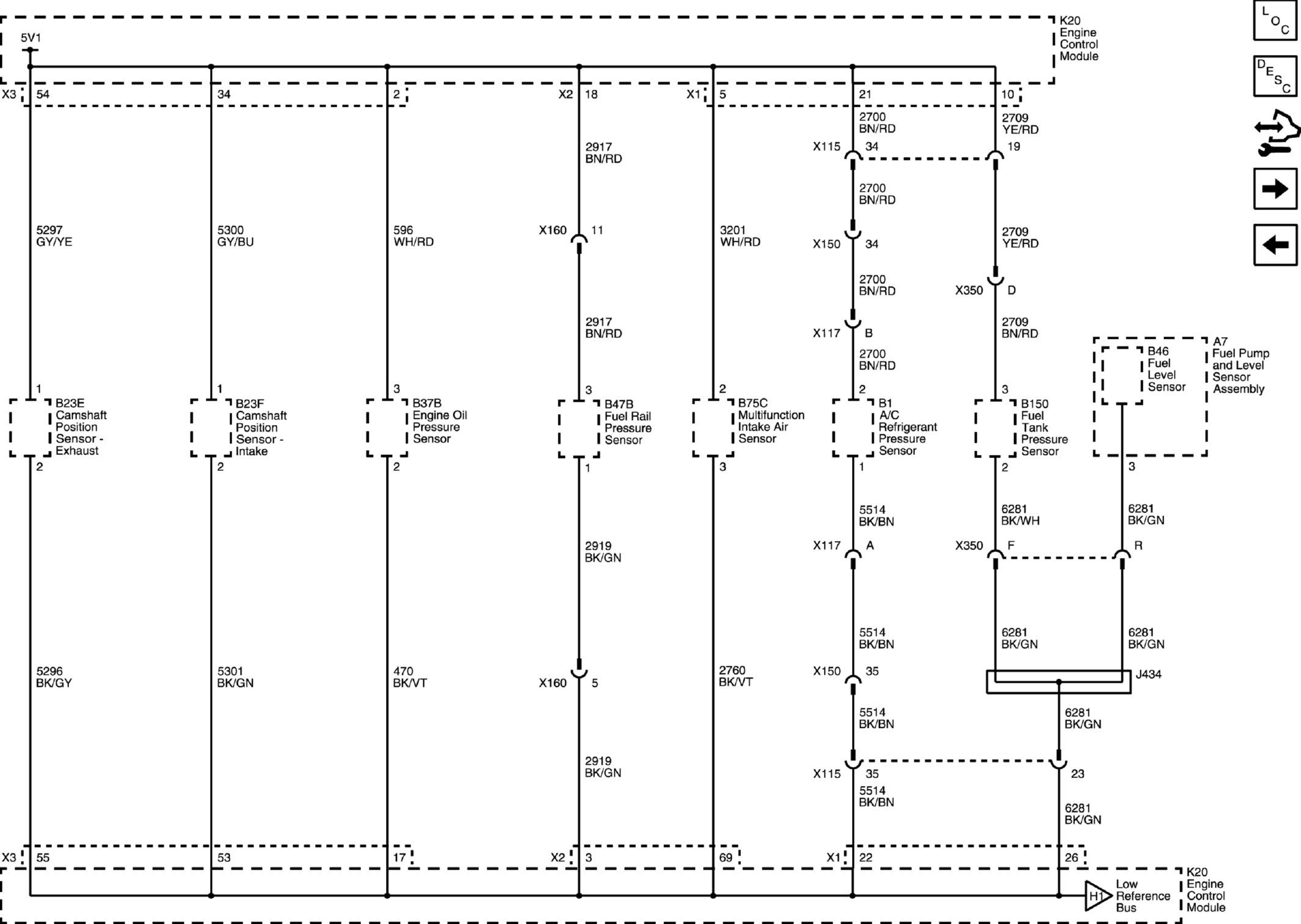

5V1, and Low Reference Bus (1 of 3)

WARNING: This page is about a different variant/trim than selected.

GM4654922
