Knock Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

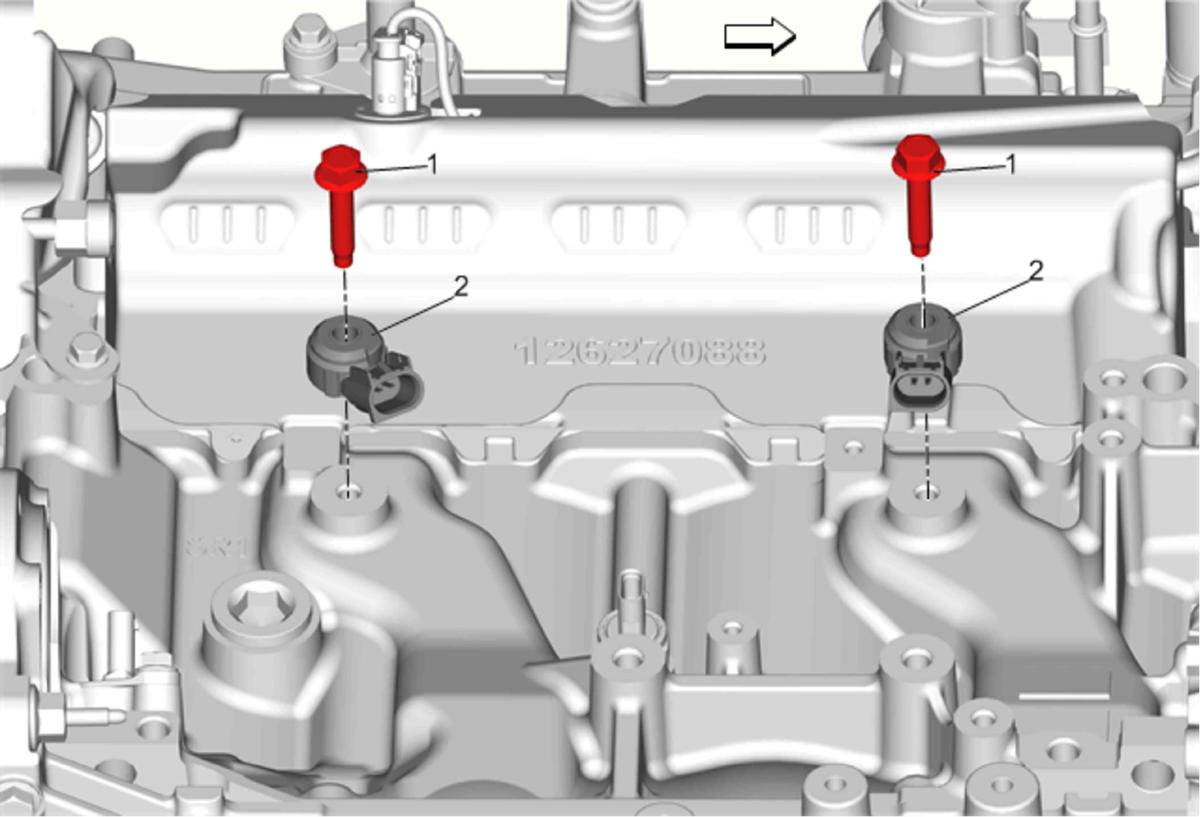

Callout	Component Name
Preliminary Procedure Lifting and Jacking the Vehicle If replacing the rear knock sensor, Remove the Starter. Starter Replacement (LFX)Starter Replacement (LCV)
1	Knock Sensor Fastener[2x] CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Knock Sensor Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Knock Sensor Fastener[2x]

CAUTION:

Tighten
25 N.m (18 lb ft)

Knock Sensor
Procedure
Disconnect the electrical connector.
