Fuel Feed Front Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

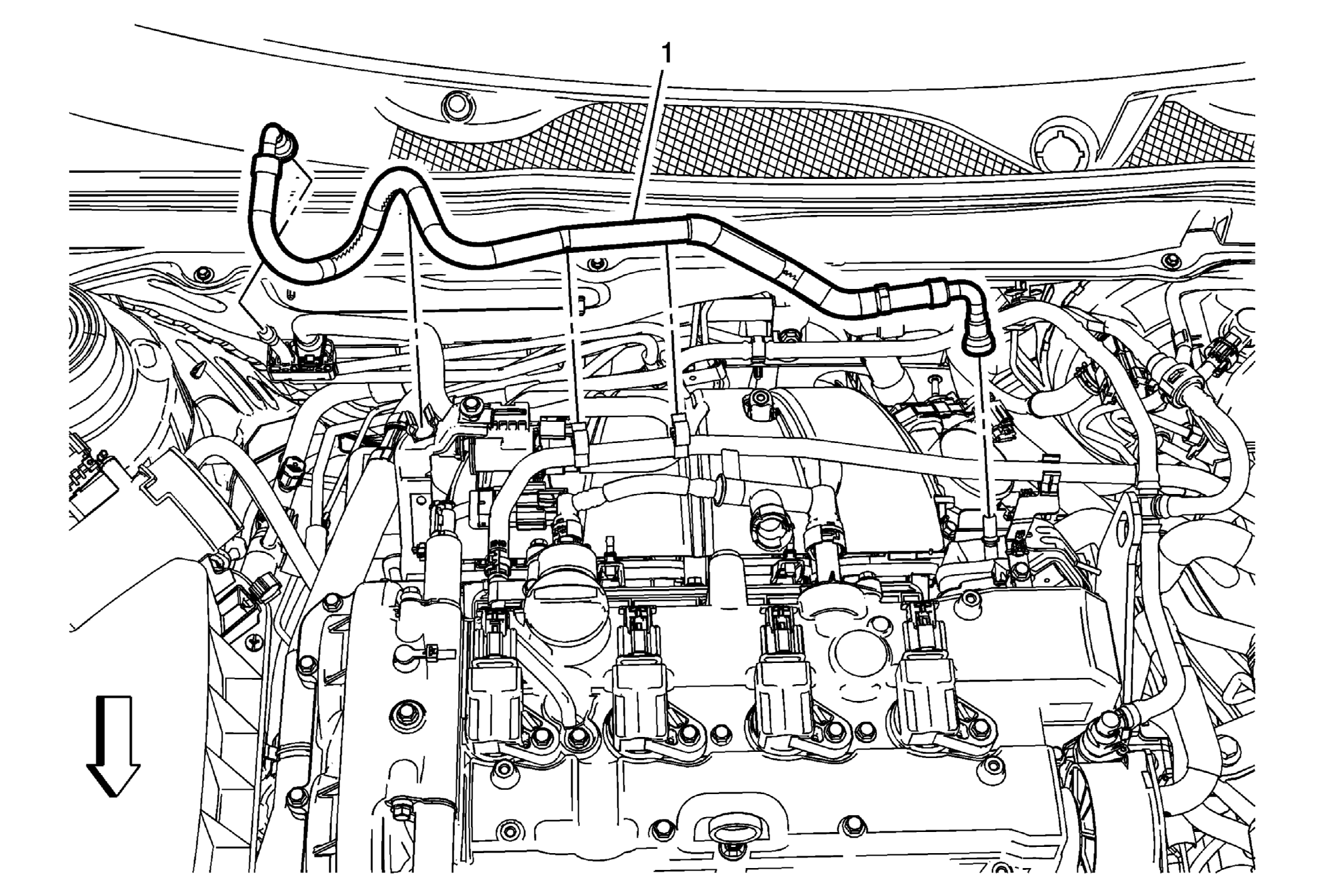

GM2815668
Callout Component Name

Preliminary Procedure

  1. Relieve the system fuel pressure. Fuel Pressure Relief
  2. Remove the intake manifold cover. Intake Manifold Cover Replacement
  3. Remove the air cleaner resonator and outlet duct. Air Cleaner Resonator and Outlet Duct Replacement
1 Fuel Feed Front Pipe

Procedure

  1. Disconnect the fuel feed front pipe from the retainers.
  2. Disconnect the fuel feed front pipe from the pump and line. Metal Collar Quick Connect Fitting Service
  3. Cycle the ignition on to run the fuel pump and check for fuel leaks.
