Evaporative Emission Canister Purge Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

Callout	Component Name
Preliminary Procedure Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement . Disconnect the EVAP hoses. Refer to Plastic Collar Quick Connect Fitting Service .

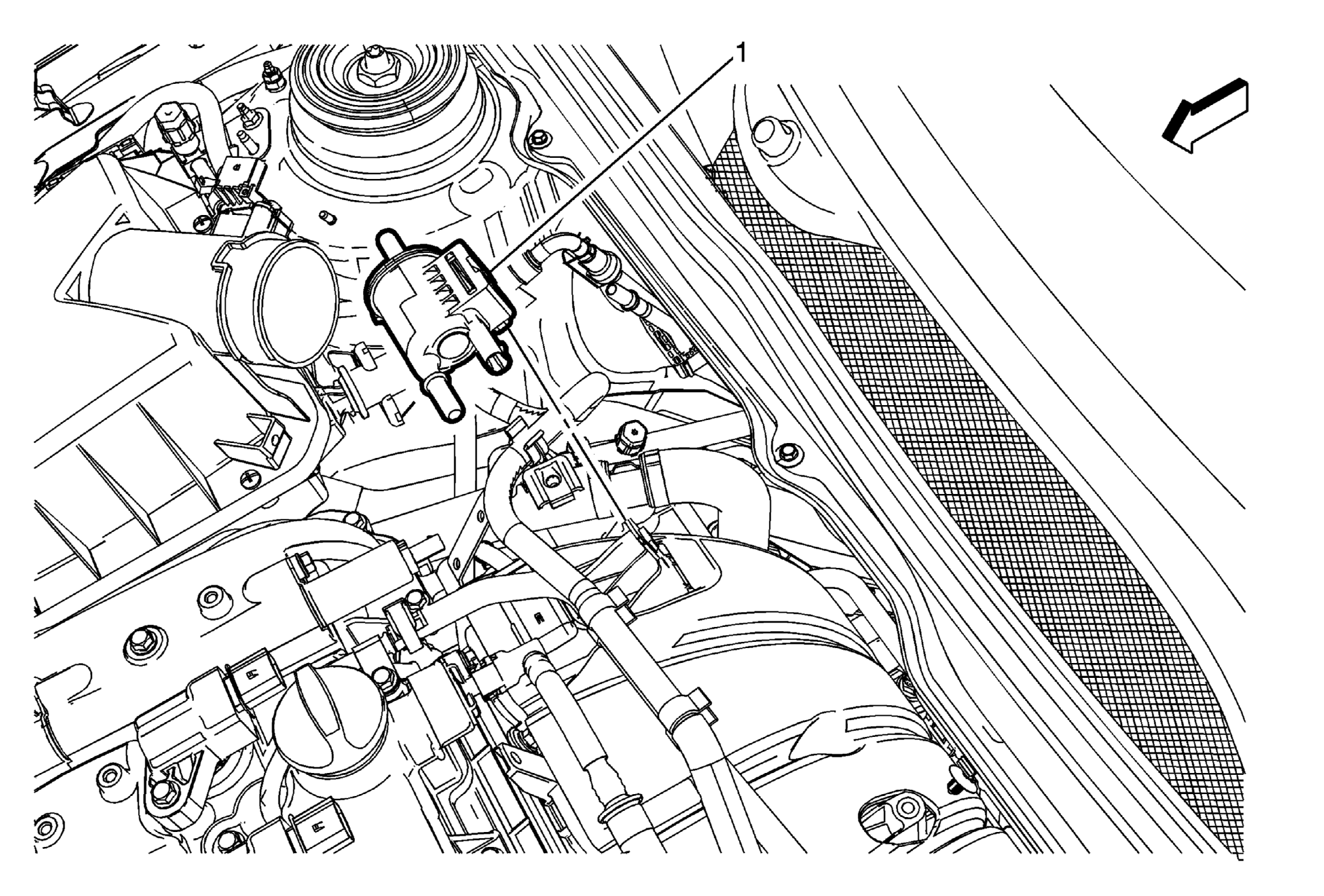

1	Evaporative Emission Canister Purge Solenoid Valve Procedure Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Preliminary Procedure

Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement .
Disconnect the EVAP hoses. Refer to Plastic Collar Quick Connect Fitting Service .

Evaporative Emission Canister Purge Solenoid Valve

Procedure
