Air Cleaner Element Replacement

WARNING: This page is about a different variant/trim than selected.

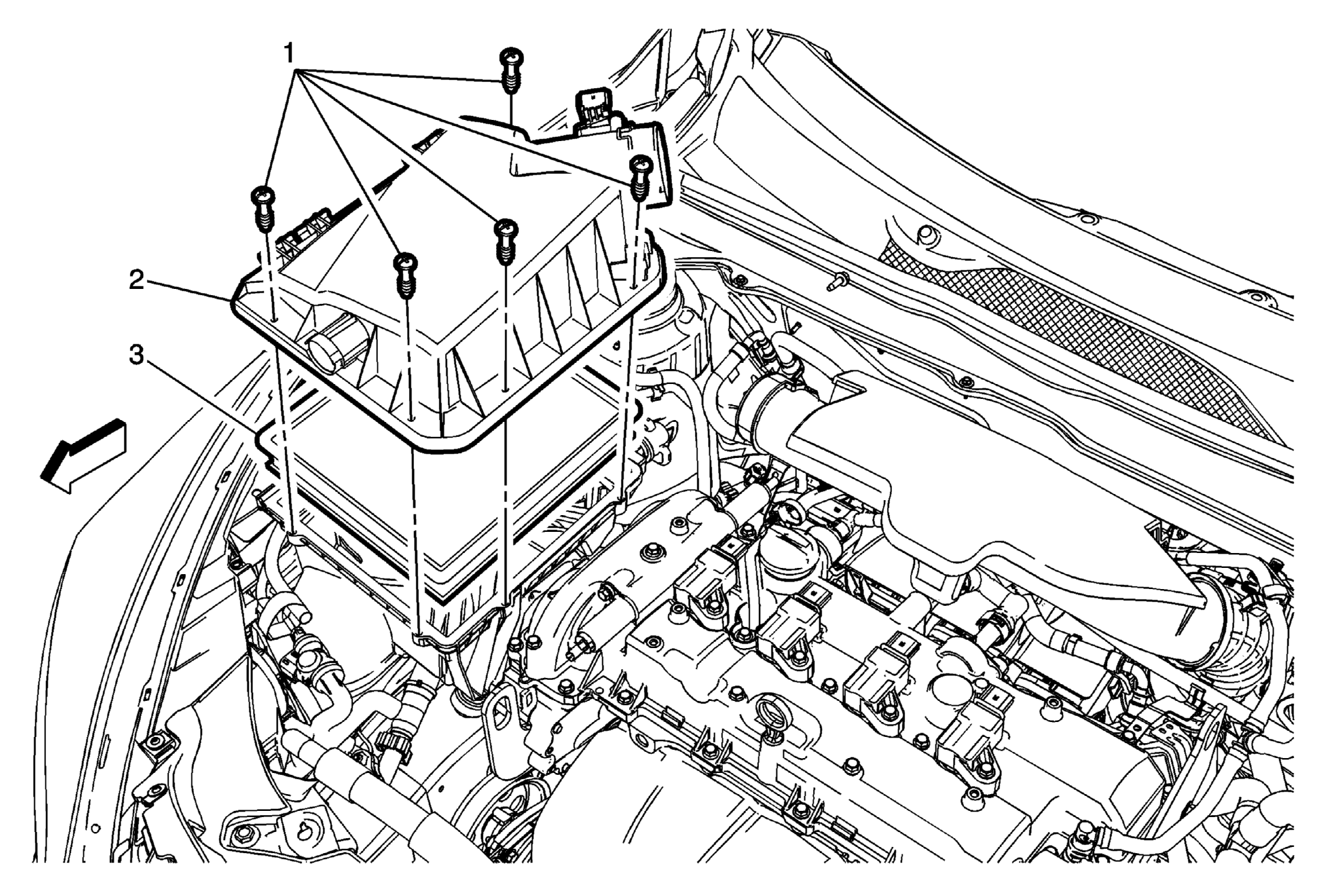

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Duct Replacement - Disconnect Disconnect the mass airflow sensor electrical connector and disconnect the harness from the 2 retainers.
1	Air Cleaner Assembly Fasteners [5x] CAUTION: Refer to Fastener Caution .
2	Air Cleaner Upper Cover
3	Air Cleaner Element
