Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the exhaust camshaft. Refer to Camshaft Position Actuator and Camshaft Replacement - Exhaust .

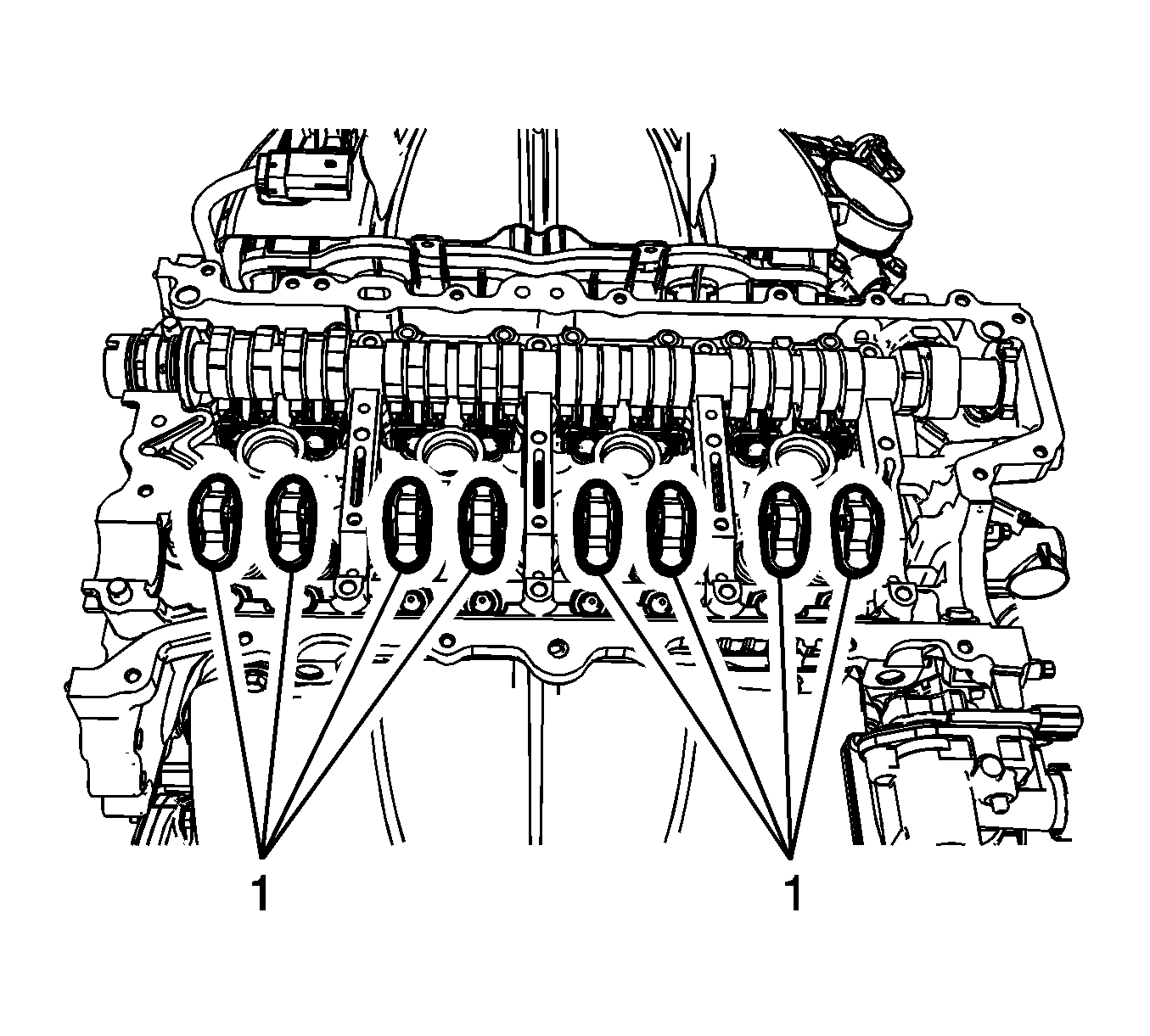

  2. GM3337315Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Keep all of the Valve Rocker Arms and hydraulic lash adjusters in order so that they can be reinstalled in their respective locations.

    Remove the exhaust rocker arm (1).
