Engine Support Fixture

WARNING: This page is about a different variant/trim than selected.

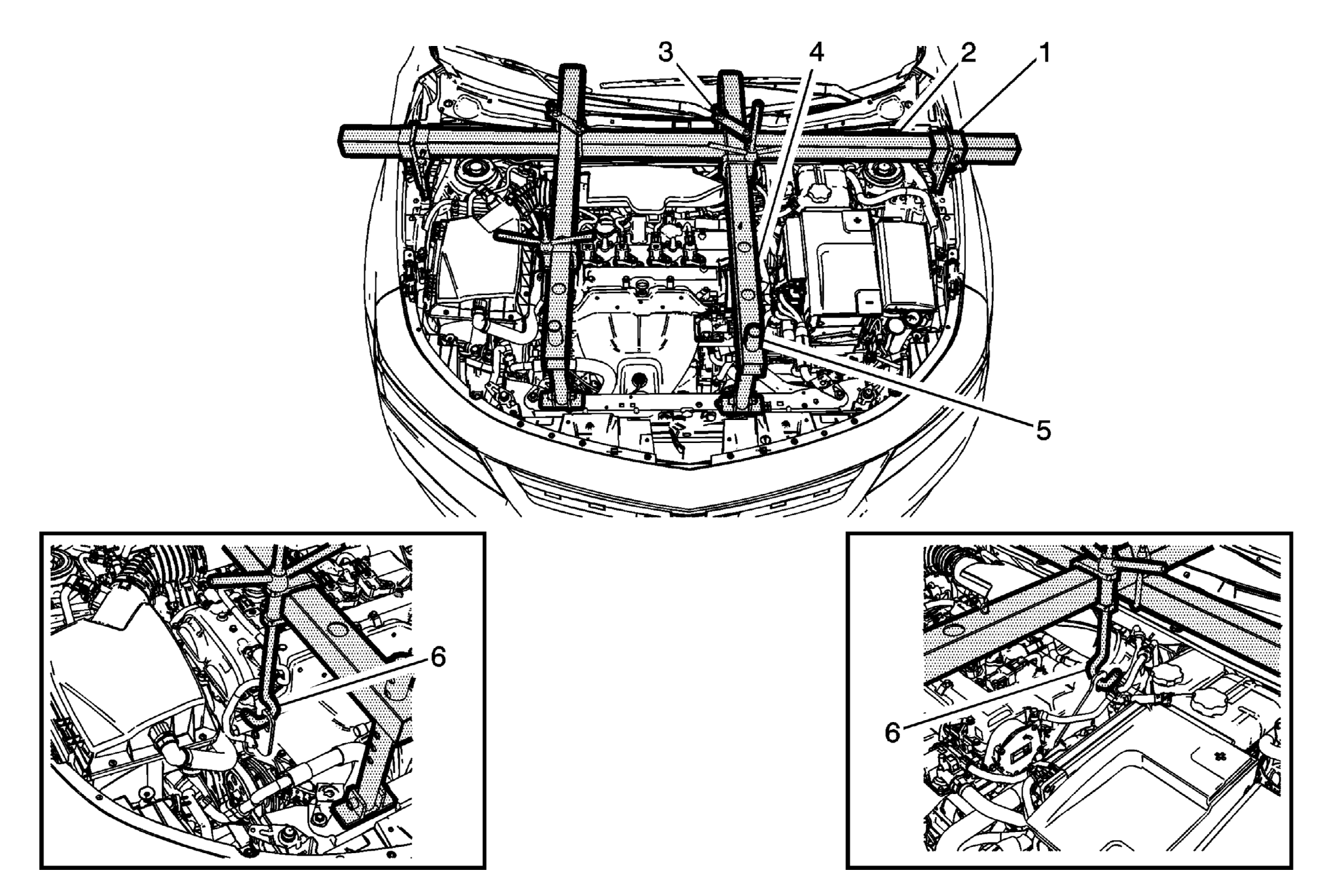

Fig 1: Engine Support Fixture Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement . Special Tools EN-51007 Engine Support Fixture.For equivalent regional tools. Refer to Special Tools .
1	Engine Support Fixture Adapter Leg (Qty: 2) Procedure Install the bracket to fender frame. Do not install on top of fender lip.
2	Main Support Beam
3	Cross Bracket (Qty: 2)
4	Strut Tower Support Assembly (Qty: 2) Procedure Adjust the length of the strut tower support assembly.
5	Radiator Tube Shelf Assembly (Qty: 2)
6	Hook Assembly (Qty: 2) Procedure If the engine is not equipped with engine lift bracket, install J-36857 in place. Use a grade 10.9 bolt to install the engine lift bracket.
