Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Remove the timing chain. Refer to Camshaft Timing Chain and Tensioner Replacement .
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Install an open-end wrench to the camshaft flats located on the intake camshaft.
- While holding the open-face wrench steady loosen the camshaft actuator bolt.

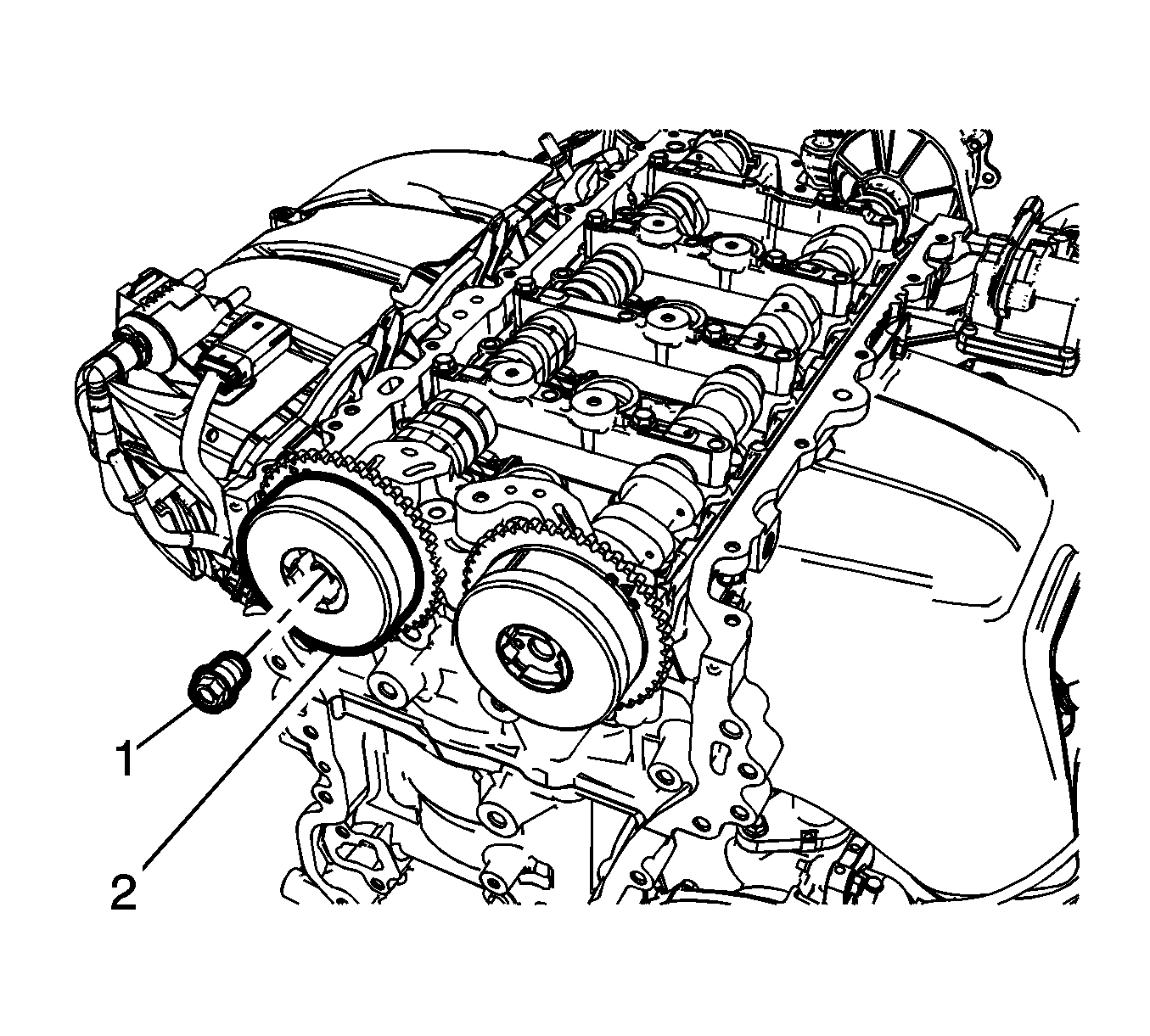

Remove and DISCARD the bolt (1) and remove the actuator (2).
