Camshaft Cover Heat Shield Replacement
WARNING: This page is about a different variant/trim than selected.

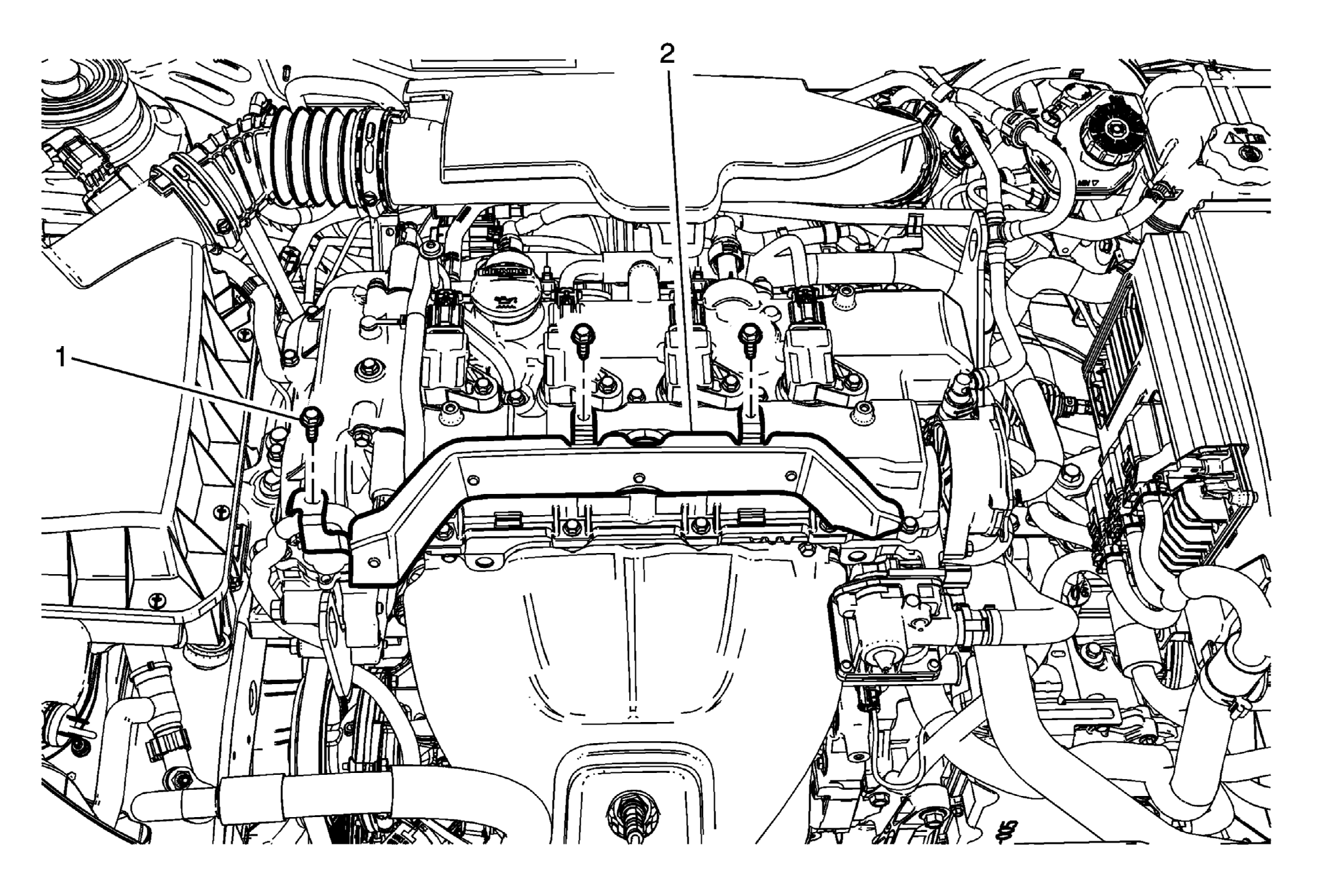

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . |
|
| 1 | Camshaft Heat Shield Cover Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Camshaft Heat Shield Cover Procedure Unclip and reposition the wire harness retainer from the camshaft cover heat shield. |
