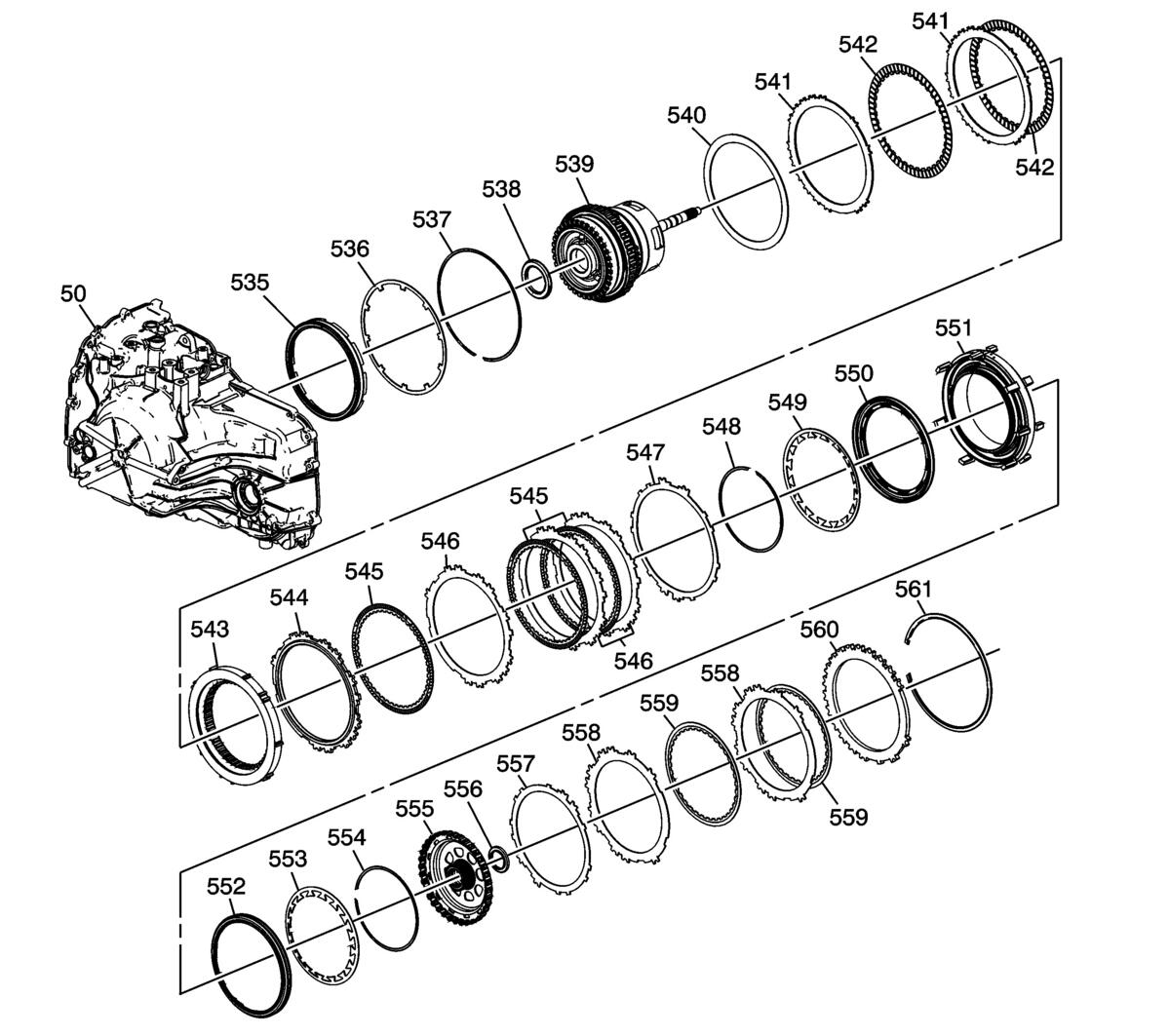

2 - 6, Low and Reverse and 1 - 2 - 3 - 4 Clutch Plate Assemblies
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 50 | A/Trans Case |
| 535 | 2-6 Clutch Piston Assembly |
| 536 | 2-6 Clutch Spring |
| 537 | 2-6 Clutch Spring Retainer Ring |
| 538 | 3-5-Reverse and 4-5-6 Clutch Housing Thrust Bearing |
| 539 | 3-5-Reverse and 4-5-6 Clutch Housing Assembly |
| 540 | 2-6 Clutch Apply (Waved) Plate |
| 541 | 2-6 Clutch Plate (Qty: 2) |
| 542 | 2-6 Clutch (w/Friction Material) Plate Assembly (Qty: 2) - Model Dependent |
| 543 | Low and Reverse Clutch Assembly |
| 544 | Low and Reverse Clutch Backing Plate |
| 545 | Low and Reverse Clutch (w/Friction Material) Plate Assembly (Qty: 3) |
| 546 | Low and Reverse Clutch Plate (Qty: 3) |
| 547 | Low and Reverse Clutch Apply (Waved) Plate |
| 548 | Low and Reverse Clutch Spring Retainer |
| 549 | Low and Reverse Clutch Spring |
| 550 | Low and Reverse Clutch Piston |
| 551 | Low and Reverse and 1-2-3-4 Clutch Housing |
| 552 | 1-2-3-4 Clutch Piston |
| 553 | 1-2-3-4 Clutch Spring |
| 554 | 1-2-3-4 Clutch Piston Retainer |
| 555 | Output Sun Gear Assembly |
| 556 | Output Sun Thrust Bearing Assembly |
| 557 | 1-2-3-4 Clutch (Waved) Plate |
| 558 | 1-2-3-4 Clutch Plate (Qty: 2) |
| 559 | 1-2-3-4 Clutch (w/Friction Material) Plate Assembly (Qty: 2) |
| 560 | 1-2-3-4 Clutch Backing Plate |
| 561 | 1-2-3-4 Clutch Backing Plate Retainer Ring |
