Section 13 (Automatic Transmission - 6T45 (MHG) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Automatic Transmission Controls Wiring Schematics
>>

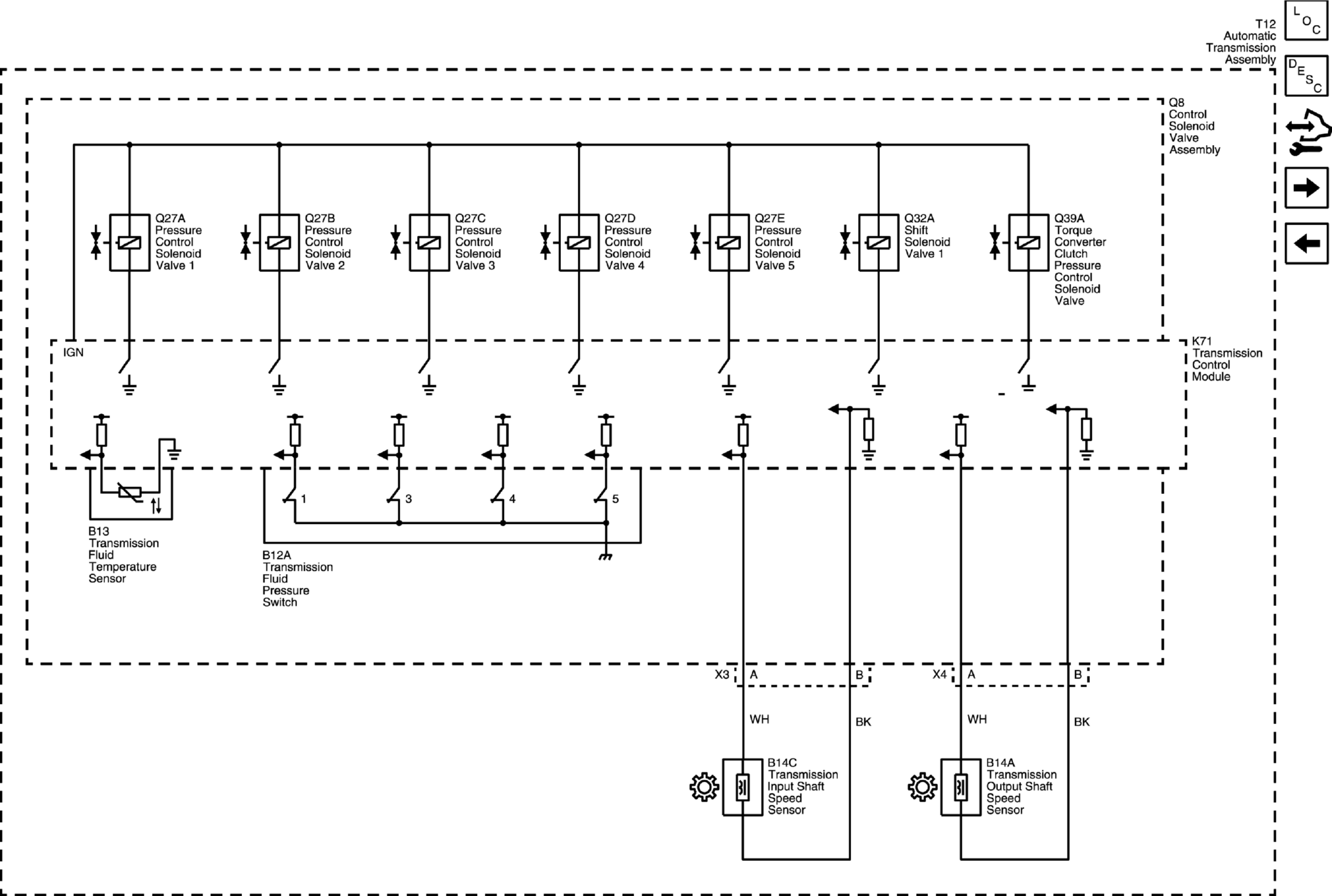

Speed and Temperature Sensors, Valve Position, Pressure and Shift Controls
Speed and Temperature Sensors, Valve Position, Pressure and Shift Controls
WARNING:
This page is about a different variant/trim than selected.
