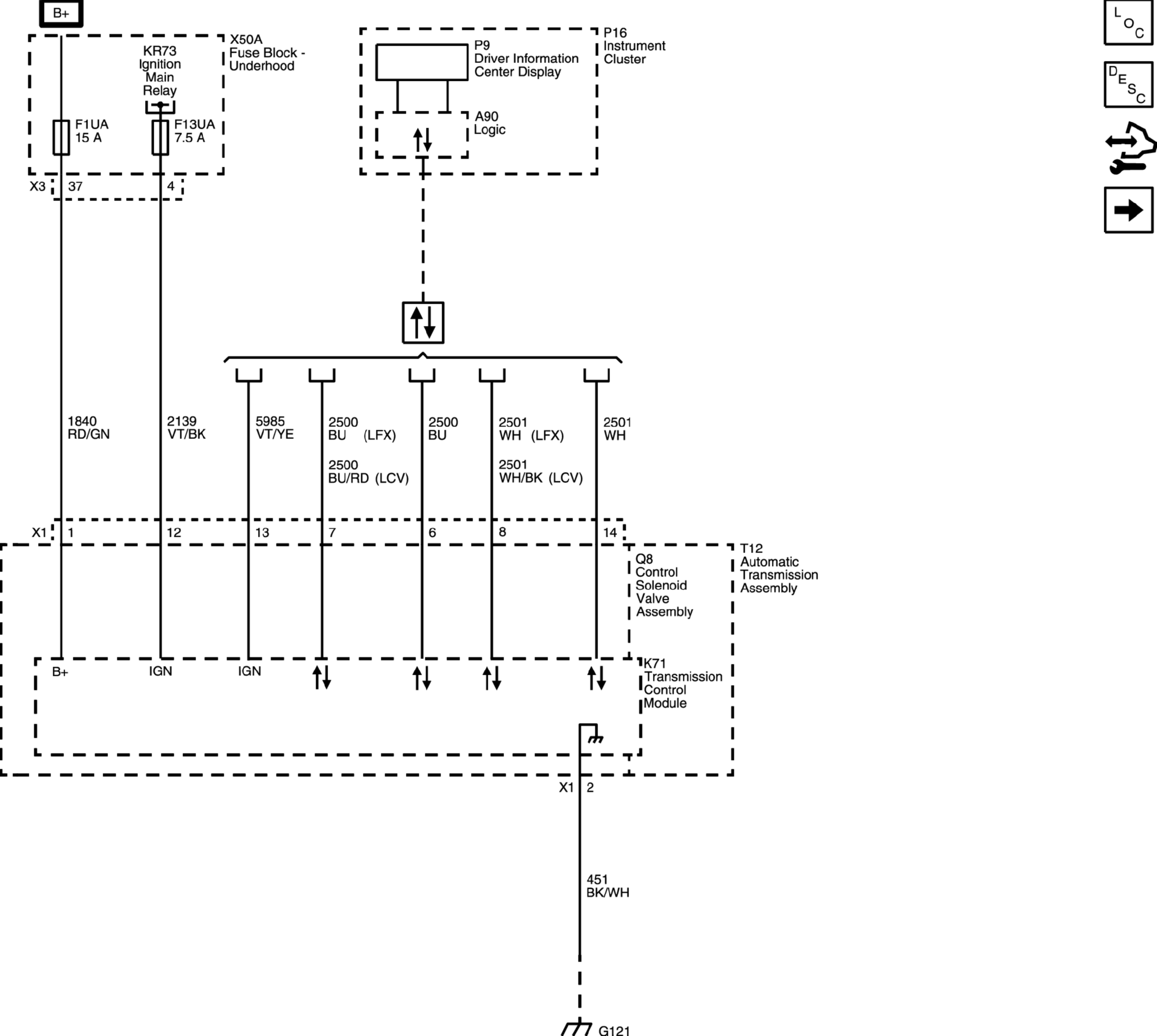

Power, Ground, Serial Data, and MIL

WARNING: This page is about a different variant/trim than selected.

GM4660606
