Secondary Air Injection Bypass Valve Replacement - Bank 2

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Disconnect the secondary air injection pipe from the secondary air injection bypass valve. Refer to Secondary Air Injection Pipe Replacement .

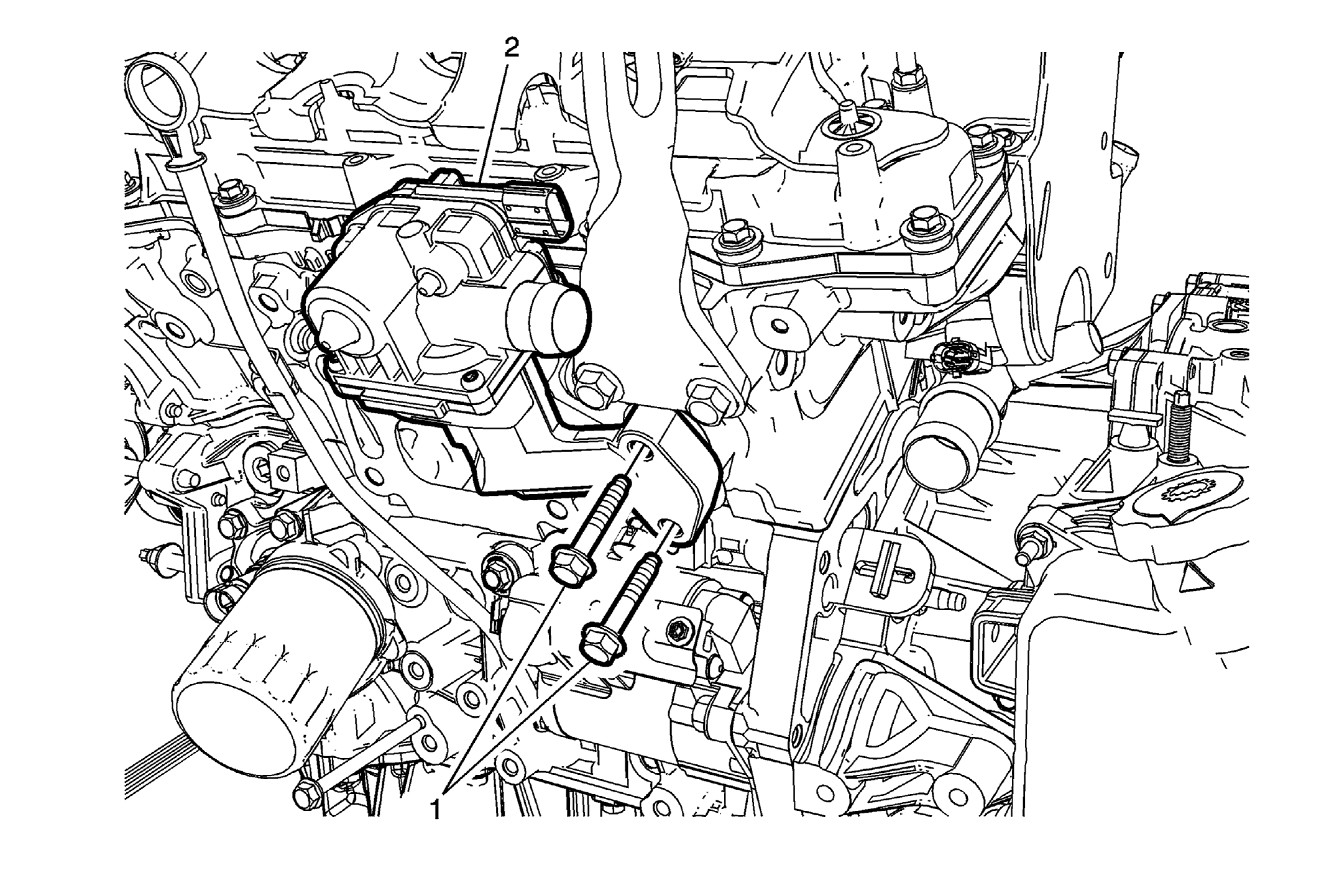

1	Secondary Air Injection Check Valve Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft).
2	Secondary Air Injection Bypass Valve Procedure Disconnect the electrical wiring harness connector from the secondary air injection check valve.

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Disconnect the secondary air injection pipe from the secondary air injection bypass valve. Refer to Secondary Air Injection Pipe Replacement .

Secondary Air Injection Check Valve Fasteners (Qty: 2)

CAUTION:

Tighten
22 N.m (16 lb ft).

Secondary Air Injection Bypass Valve
Procedure
Disconnect the electrical wiring harness connector from the secondary air injection check valve.
