Engine Coolant Air Bleed Pipe Replacement (LCV)

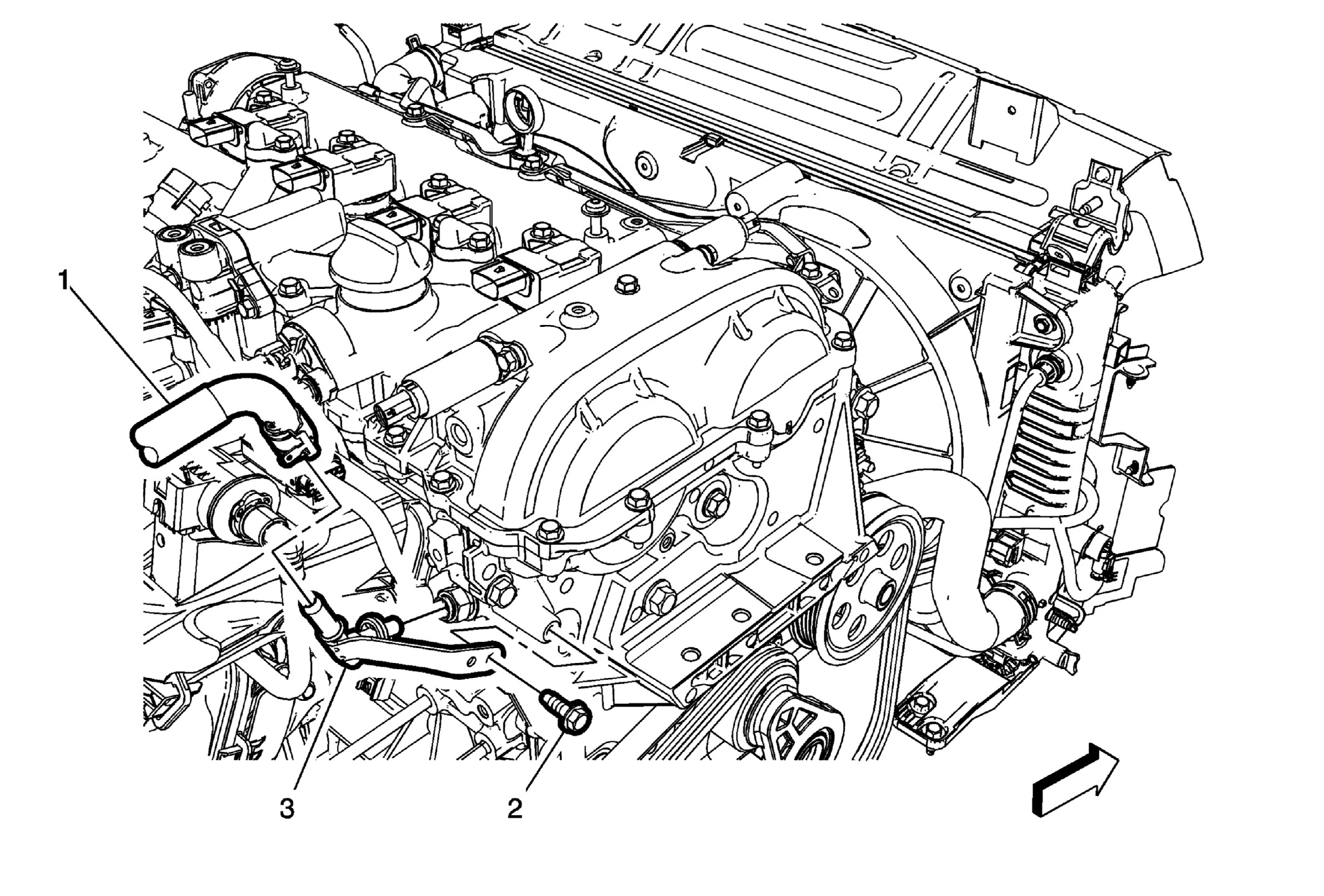

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (Vacuum and Fill) Cooling System Draining and Filling (Static) . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Radiator Surge Tank Inlet Hose Procedure Reposition the radiator surge tank hose using the BO-38185 Hose Clamp Pliers NOTE: Replace hose clamp if necessary Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Engine Coolant Air Bleed Pipe Fastener CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
3	Engine Coolant Air Bleed Pipe
