X202 Steering Wheel Harness to Steering Wheel Airbag Harness ()
|
|
|

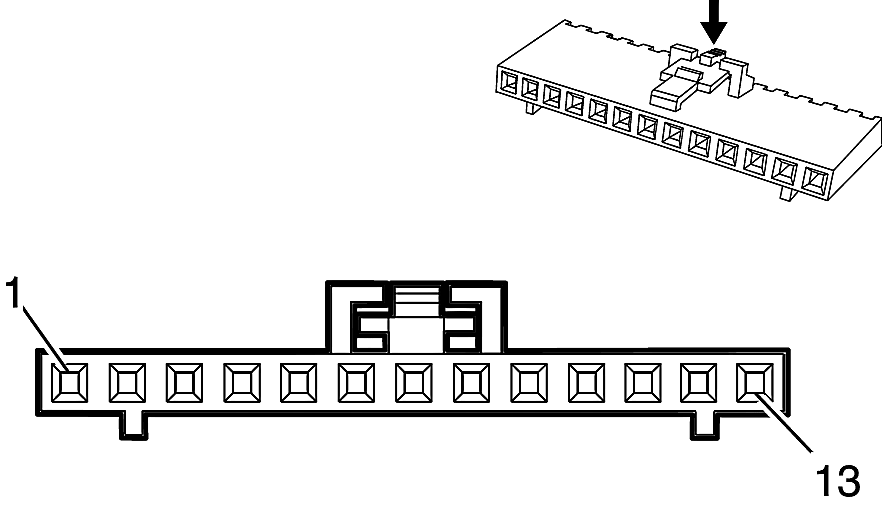

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 50-57-9413
- Service Connector: Service by Harness - See Part Catalog
- Description: 13-Way F 0.64 SL Series (BK)
|

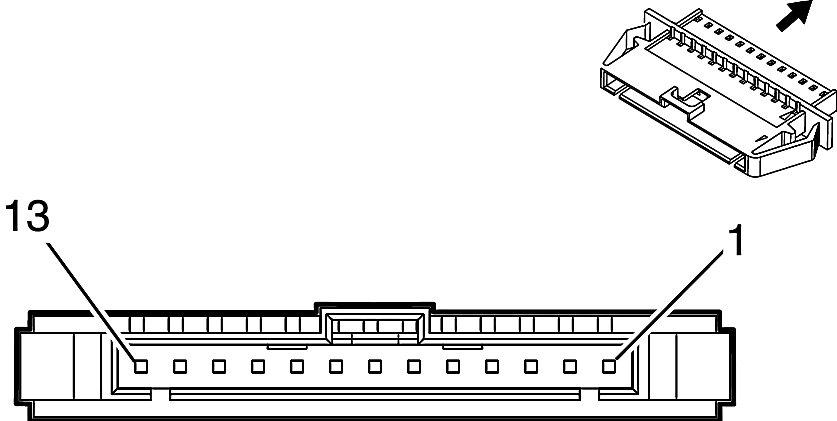

Connector Part Information
- Harness Type: Steering Wheel Airbag
- OEM Connector: 701-07-0047
- Service Connector: Service by Harness - See Part Catalog
- Description: 13-Way M 0.64 SL Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
1550 |
I |
- |
Ground |
1 |
0.35 |
BK |
1550 |
II |
- |
| 2 |
0.35 |
OG |
3894 |
I |
- |
Local Interconnect Network Serial Data Bus 12 |
2 |
0.35 |
OG |
3894 |
II |
- |
| 3 |
0.35 |
RD/WH |
5440 |
I |
- |
Battery Positive Voltage |
3 |
0.35 |
RD/WH |
5440 |
II |
- |
| 4 |
0.35 |
TN |
9502 |
I |
- |
Radio Volume Up Signal |
4 |
0.35 |
TN |
9502 |
II |
- |
| 5 |
0.35 |
BU |
9503 |
I |
- |
Radio Volume Down Signal |
5 |
0.35 |
BU |
9503 |
II |
- |
| 6 |
0.35 |
BN |
9500 |
I |
- |
Radio Preset Up Signal |
6 |
0.35 |
BN |
9500 |
II |
- |
| 7 |
0.35 |
WH |
9501 |
I |
- |
Radio Preset Down Signal |
7 |
0.35 |
WH |
9501 |
II |
- |
| 8 |
0.35 |
PK |
5737 |
I |
- |
Adaptive Cruise Control Gap Up/Down Switch Signal |
8 |
0.35 |
PK |
5737 |
II |
- |
| 9 |
0.35 |
BN/GN |
1884 |
I |
- |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
9 |
0.35 |
BN/GN |
1884 |
II |
- |
| 10 |
0.35 |
YE |
1444 |
I |
- |
12V Reference |
10 |
0.35 |
YE |
1444 |
II |
- |
| 11 |
0.35 |
YE |
5883 |
I |
- |
Heated Steering Wheel Switch Signal |
11 |
0.35 |
YE |
5883 |
II |
- |
| 12 |
0.35 |
GN |
5884 |
I |
- |
Heated Steering Wheel Switch LED Control |
12 |
0.35 |
GN |
5884 |
II |
- |
| 13 |
0.35 |
RD |
3287 |
I |
- |
Horn Switch Signal |
13 |
0.35 |
RD |
3287 |
II |
- |
