M77D Outside Rearview Mirror Motor - Driver (A45)
|
|

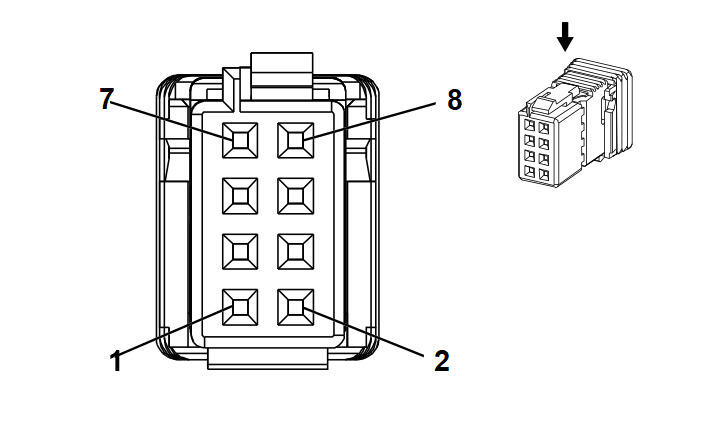

Connector Part Information
- Harness Type: Outside Rearview Mirror - Driver
- OEM Connector: 9-965382-2
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F Micro-Power and Power QuadLock Series (D-BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY/BK |
3393 |
Driver Mirror Position Sensor Low Reference |
I |
- |
| 2 |
0.35 |
GN |
3389 |
Driver Mirror Motor Right (+) Left (-) Control |
I |
- |
| 3 |
0.35 |
TN |
3394 |
Driver Mirror Position Sensor Up (+) Down (-) Signal |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
BN |
3392 |
Driver Mirror Position Sensor 5V Reference |
I |
- |
| 6 |
0.35 |
BU |
3391 |
Driver Mirror Motor Common Control |
I |
- |
| 7 |
0.35 |
PK |
3395 |
Driver Mirror Position Sensor Left (-) Right (+) Signal |
I |
- |
| 8 |
0.35 |
RD |
3390 |
Driver Mirror Motor Up (+) Down (-) Control |
I |
- |
