Rear Compartment Lid Harness Routing

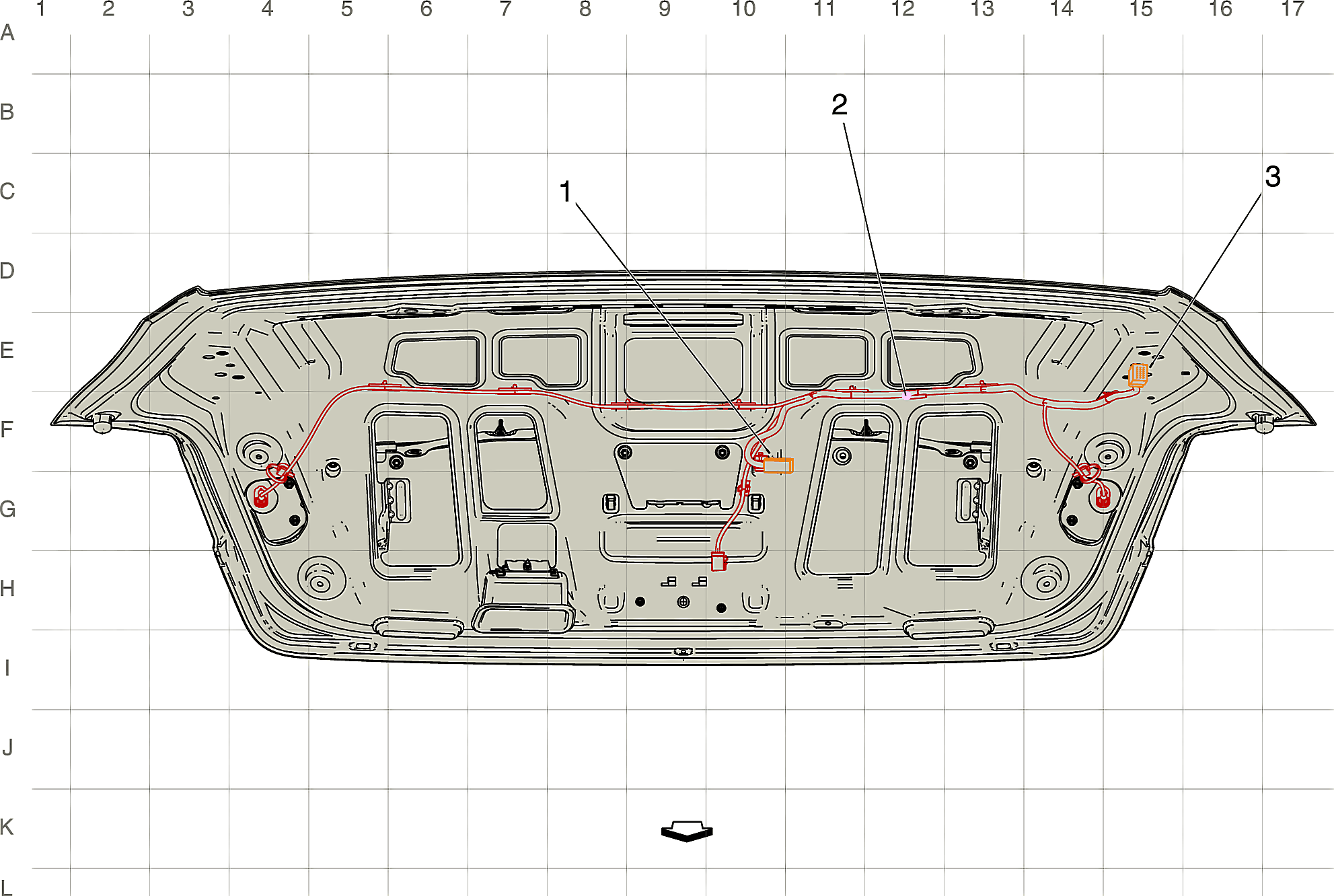

GM2907587Courtesy of GENERAL MOTORS COMPANY
Items
1. X915 License Lamp Harness to Rear Compartment Lid Harness (10 Cavities) X915 License Lamp Harness to Rear Compartment Lid Harness
2. J900 Rear Compartment Lid Harness
3. X900 Body Harness to Rear Compartment Lid Harness (18 Cavities) X900 Body Harness to Rear Compartment Lid Harness
