Rear Bumper Harness Routing (UD7, UFG or UFT)

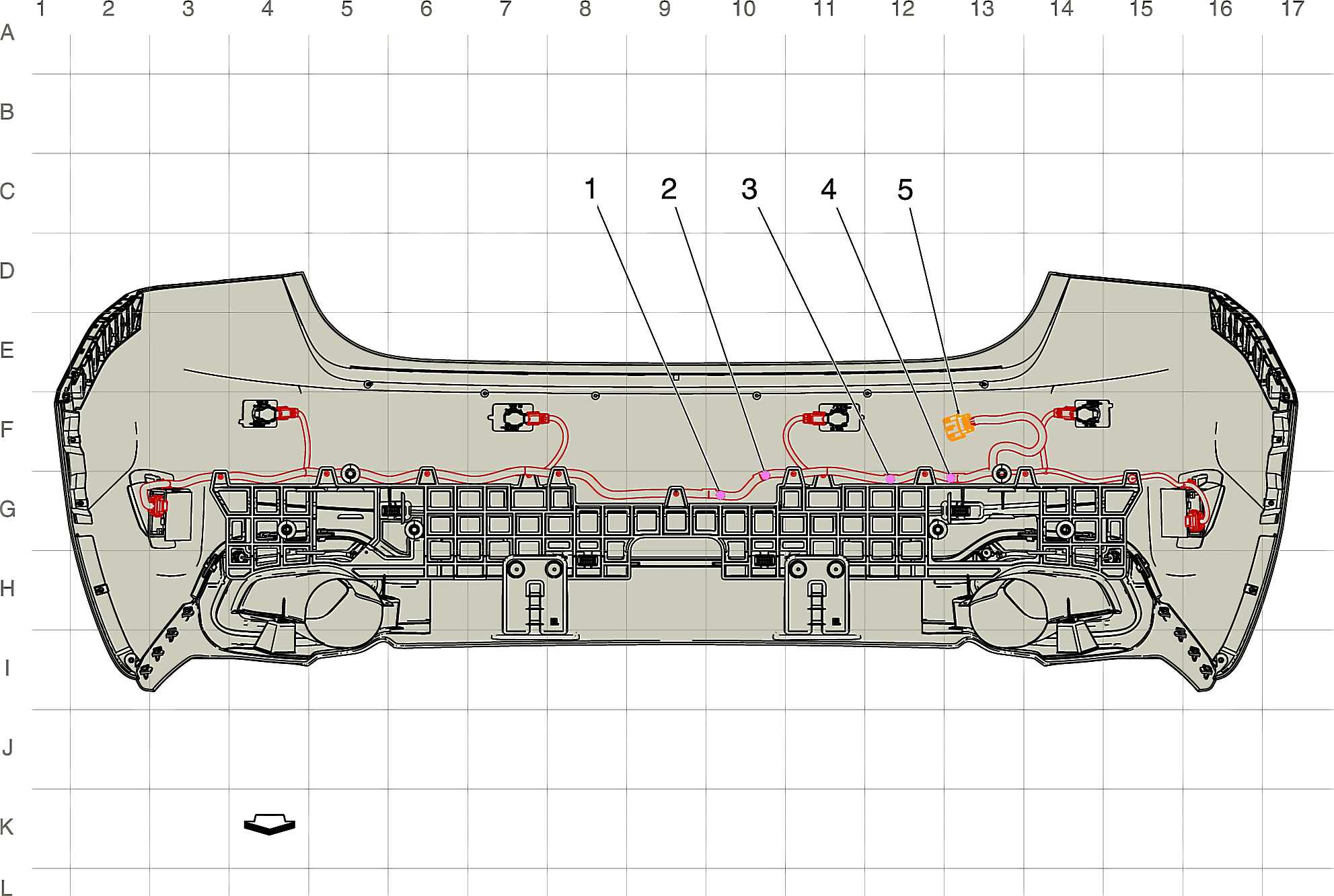

GM2907586Courtesy of GENERAL MOTORS COMPANY
Items
1. J415 Rear Bumper Harness (UD7)
2. J417 Rear Bumper Harness (UFG or UFT)
3. J416 Rear Bumper Harness (UD7)
4. J418 Rear Bumper Harness (UFG or UFT)
5. X415 Rear Fascia Harness to Body Harness (12 Cavities) (UD7, UFG or UFT) X415 Rear Fascia Harness to Body Harness (-UFG/UKC)X415 Rear Fascia Harness to Body Harness (UFG/UKC)
