Passenger Seat Harness Routing

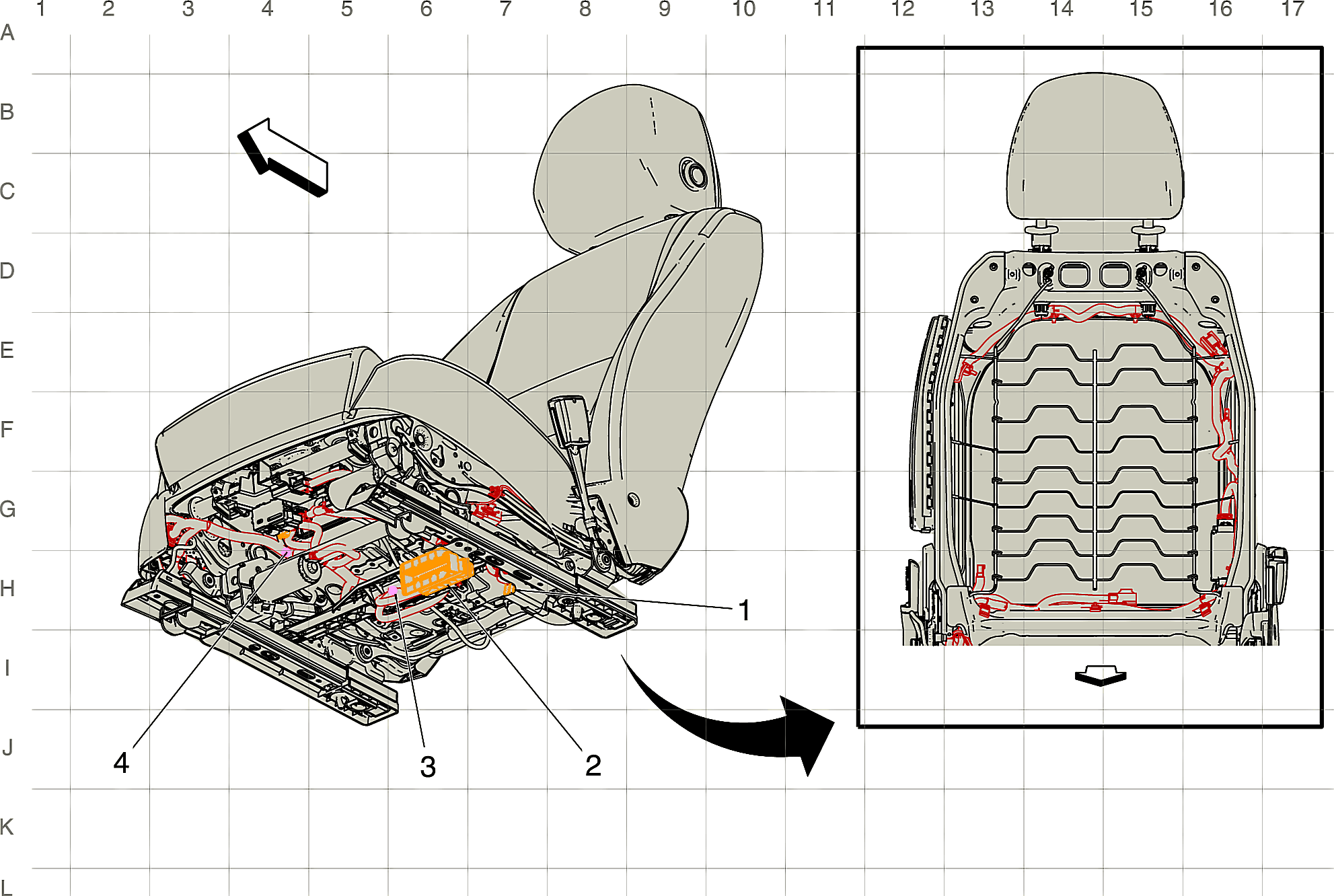

GM2913067Courtesy of GENERAL MOTORS COMPANY
Items
1. X321 Passenger Seat Back Harness to Passenger Seat Cushion Harness (20 Cavities) X321 Passenger Seat Back Harness to Passenger Seat Cushion Harness (-APH)X321 Passenger Seat Back Harness to Passenger Seat Cushion Harness (-KA1)X321 Passenger Seat Back Harness to Passenger Seat Cushion Harness (APH+KU3)X321 Passenger Seat Back Harness to Passenger Seat Cushion Harness (KA1+KU1)X321 Passenger Seat Back Harness to Passenger Seat Cushion Harness (KA1-KU1)
2. X320 Body Harness to Passenger Seat Cushion Harness (48 Cavities) X320 Body Harness to Passenger Seat Cushion Harness
3. J320 Passenger Seat Cushion Harness
4. J322 Passenger Seat Cushion Harness
