Passenger Door Trim Harness Routing

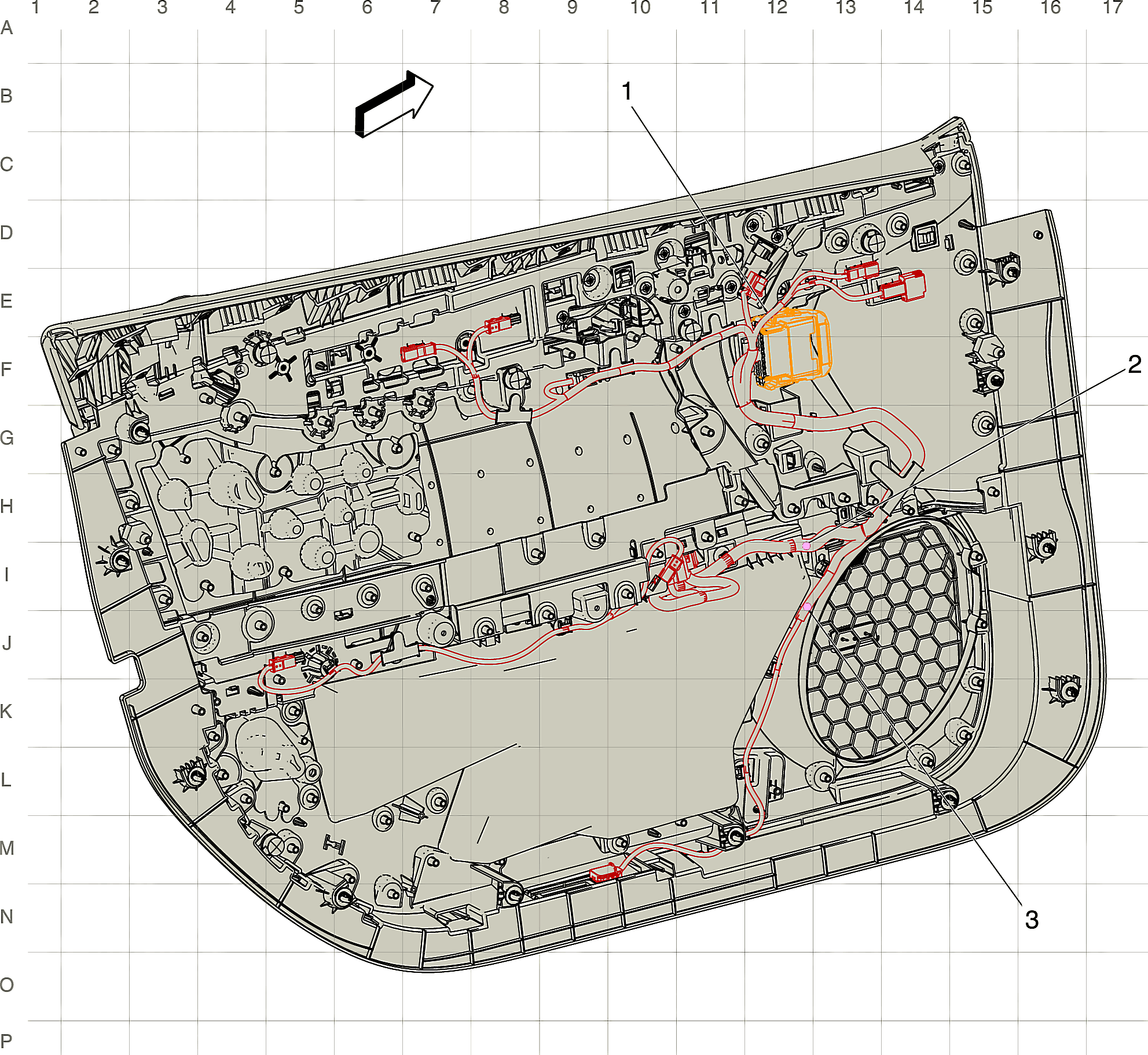

GM2907578Courtesy of GENERAL MOTORS COMPANY
Items
1. X605 Passenger Door Harness to Passenger Door Trim Harness (40 Cavities) X605 Passenger Door Harness to Passenger Door Trim Harness
2. J605 Passenger Door Trim Harness
3. J606 Passenger Door Trim Harness (1LT or 1LZ)
