Passenger Door Harness Routing

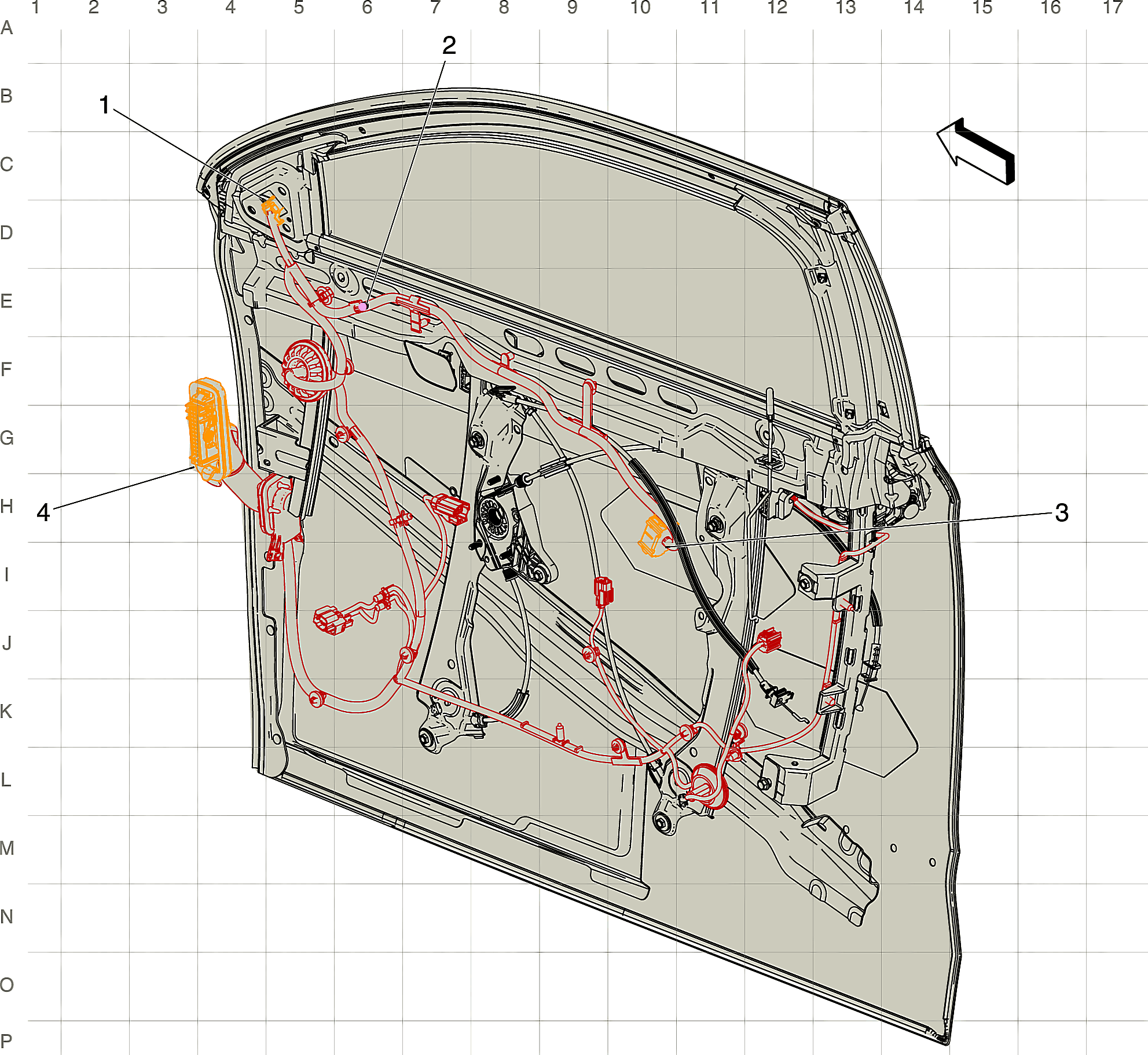

GM2907577Courtesy of GENERAL MOTORS COMPANY
Items
1. X610 Passenger Door Harness to Outside Rearview Miror - Passenger Harness (18 Cavities) X610 Passenger Door Harness to Outside Rearview Mirror - Passenger Harness
2. J600 Passenger Door Harness
3. X605 Passenger Door Harness to Passenger Door Trim Harness (40 Cavities) X605 Passenger Door Harness to Passenger Door Trim Harness
4. X600 Passenger Door Harness to Body Harness (41 Cavities) X600 Passenger Door Harness to Body Harness
