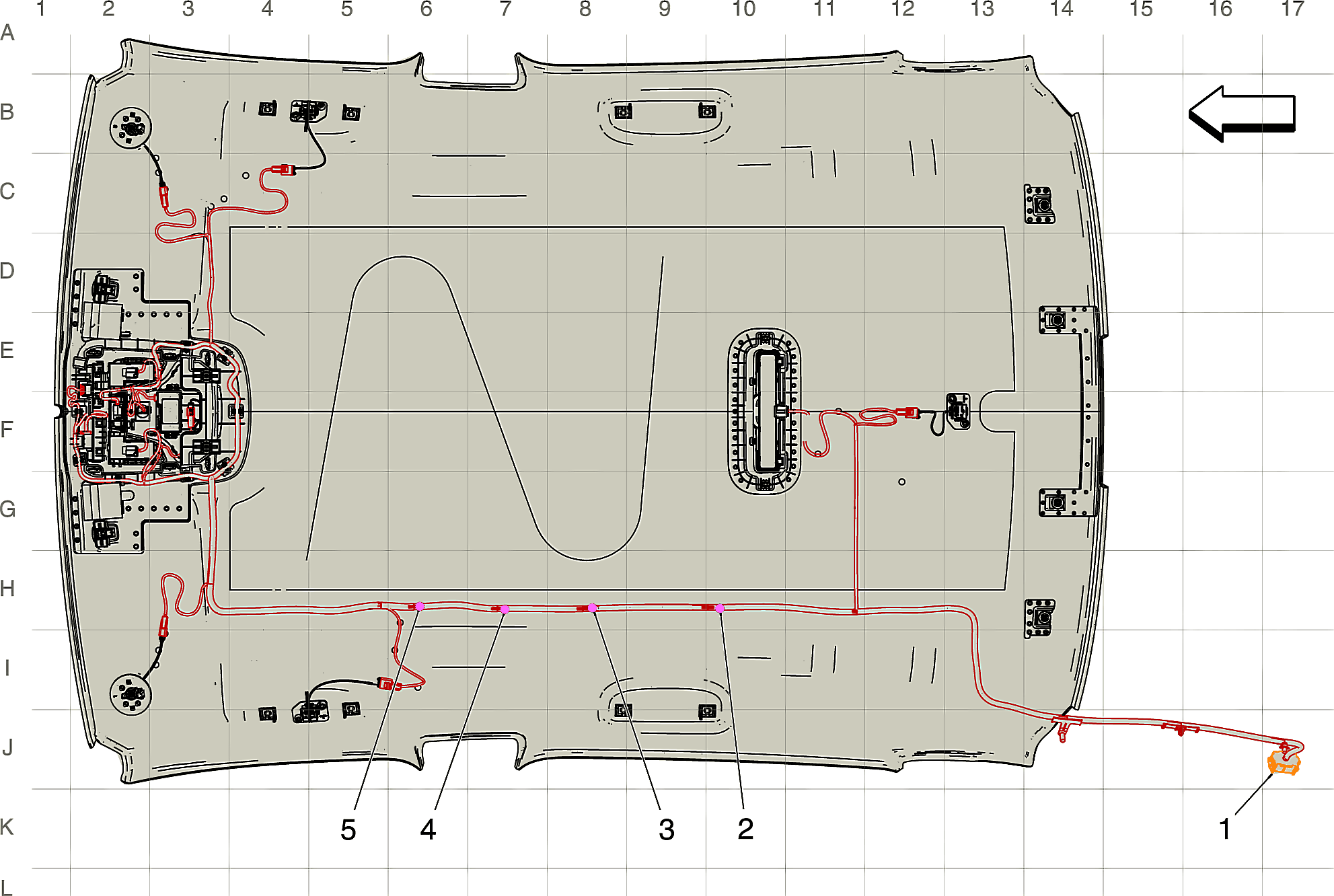

Headliner Harness Routing (without C3U)

GM2907596Courtesy of GENERAL MOTORS COMPANY
Items
1. X400 Headliner Harness to Body Harness (40 Cavities) X400 Headliner Harness to Body Harness
2. J398 Headliner Harness
3. J397 Headliner Harness
4. J396 Headliner Harness
5. J399 Headliner Harness
