Front Bumper Harness Routing

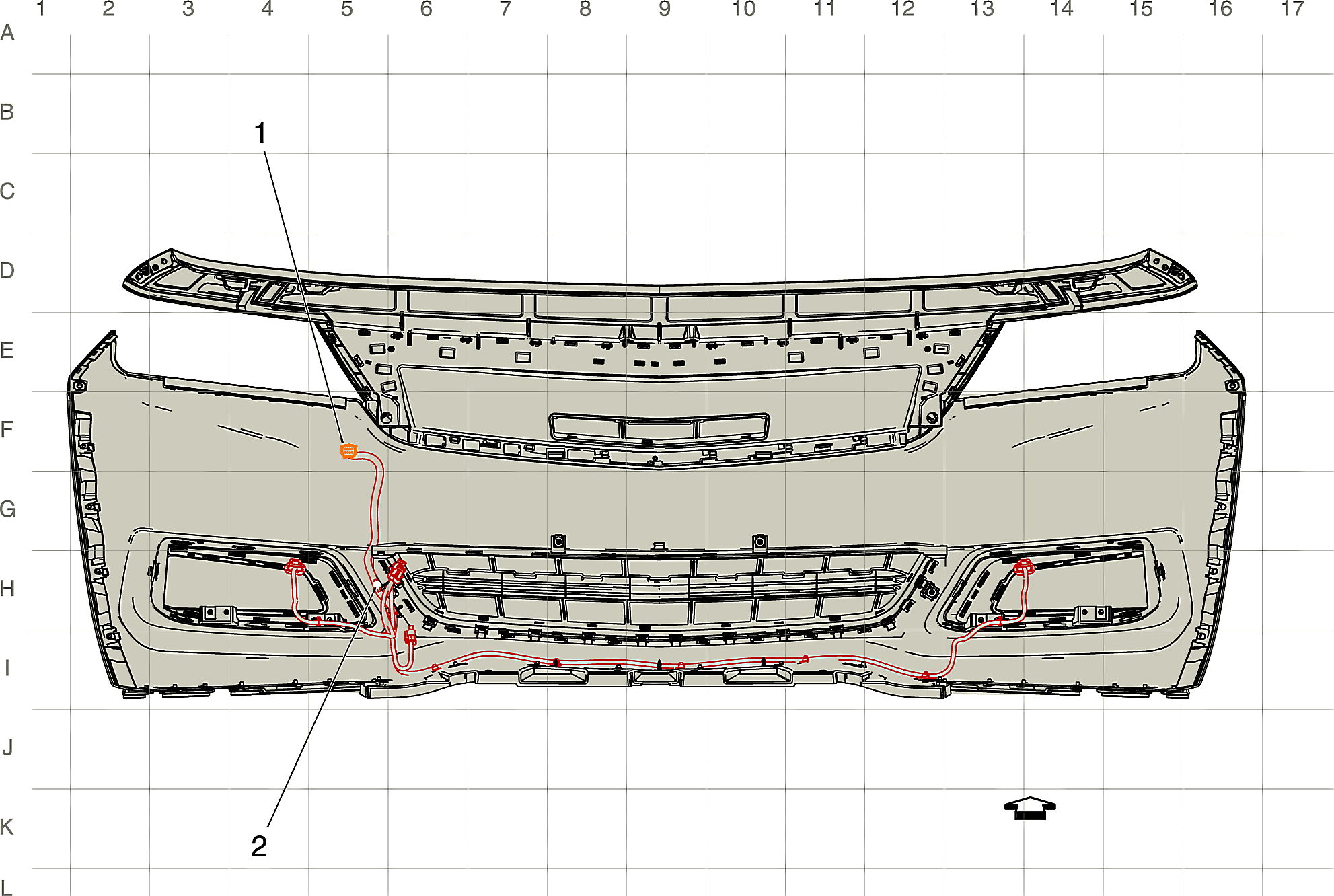

GM2909797Courtesy of GENERAL MOTORS COMPANY
Items
1. X105 Forward Lamp Harness to Front Fascia Harness (8 Cavities) X105 Forward Lamp Harness to Front Fascia Harness (-9H8/VRI)X105 Forward Lamp Harness to Front Fascia Harness (9H8-VRI)X105 Forward Lamp Harness to Front Fascia Harness (VRI)
2. J105 Front Bumper (9H8)
