Forward Lamp Harness Routing - Right Side of Engine Compartment

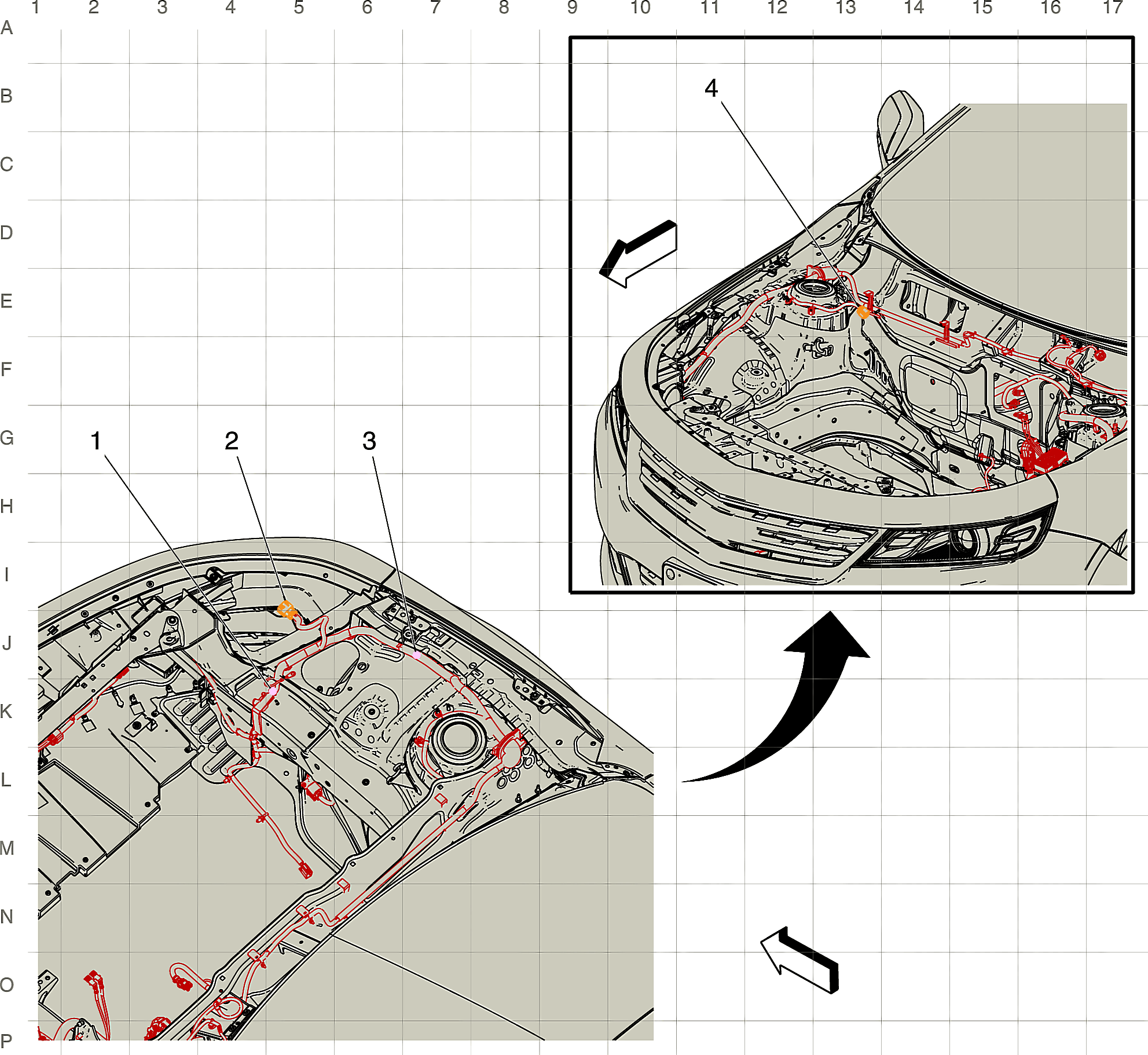

GM2909799Courtesy of GENERAL MOTORS COMPANY
Items
1. J102 Forward Lamp Harness
2. X120 Forward Lamp Harness to Right Headlamp Harness (8 Cavities) X120 Forward Lamp Harness to Right Headlamp Harness (T4A)X120 Forward Lamp Harness to Right Headlamp Harness (T4F)
3. J152 Forward Lamp Harness
4. X190 Forward Lamp Harness to Fuel Level Sensor Jumper Harness (3 Cavities) (FHS) X190 Forward Lamp Harness to Fuel Level Sensor Jumper Harness
