Engine Harness Routing - Right Rear (LFX)

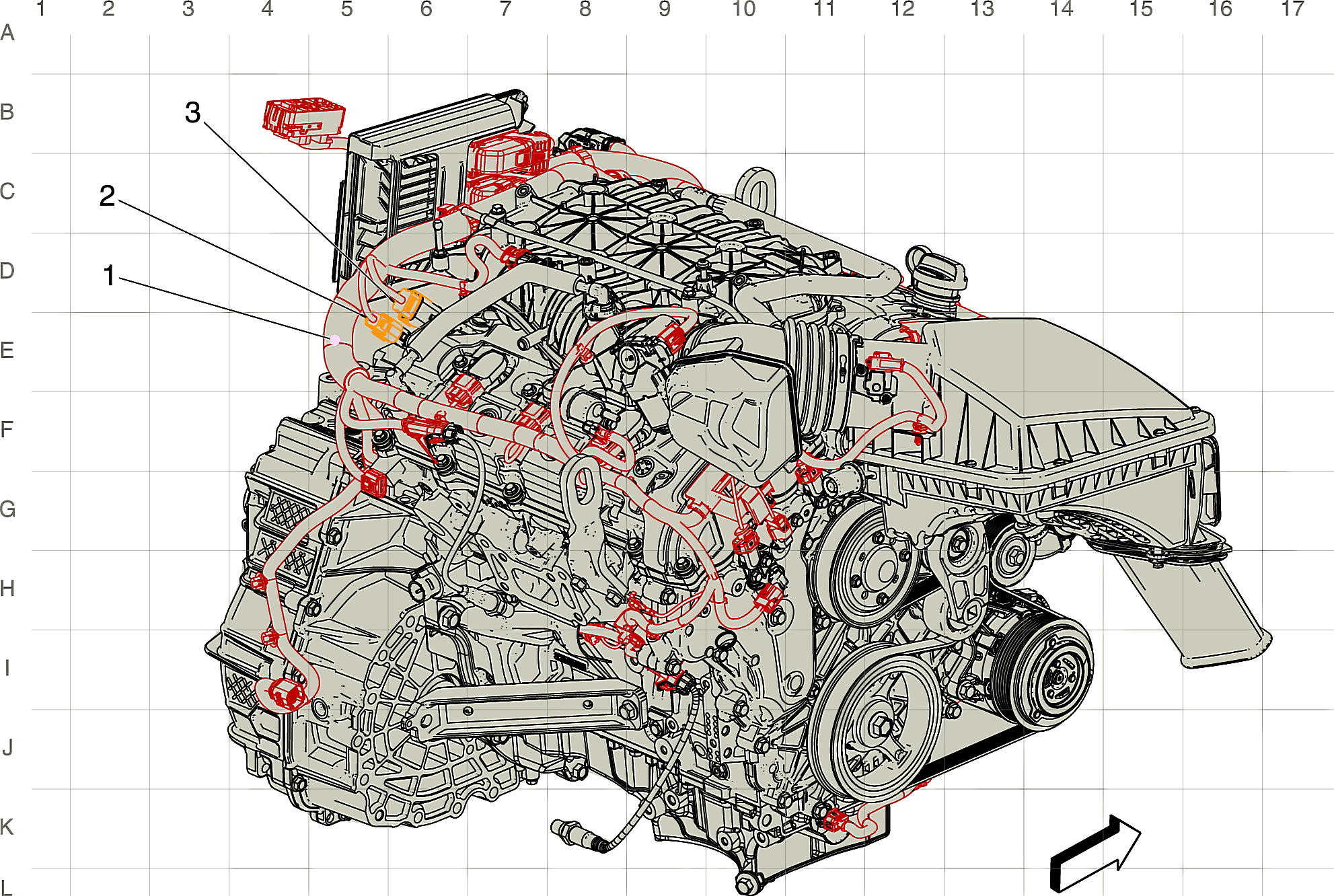

GM3226573Courtesy of GENERAL MOTORS COMPANY
Items
1. J103 Engine Harness
2. X160 Engine Harness to Fuel Rail Harness (12 Cavities) X160 Engine Harness to Fuel Rail Bank 1 Harness (LFX)X161 Engine Harness to Fuel Rail Bank 2 Harness (LCV)
3. X161 Engine Harness to Fuel Rail Bank 2 Harness (12 Cavities) X161 Engine Harness to Fuel Rail Bank 2 Harness (LFX)
