Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams
>>
Wiring Harness Routing And Schematic Wiring Diagrams
>>
Wiring Harness Routing Views
>>

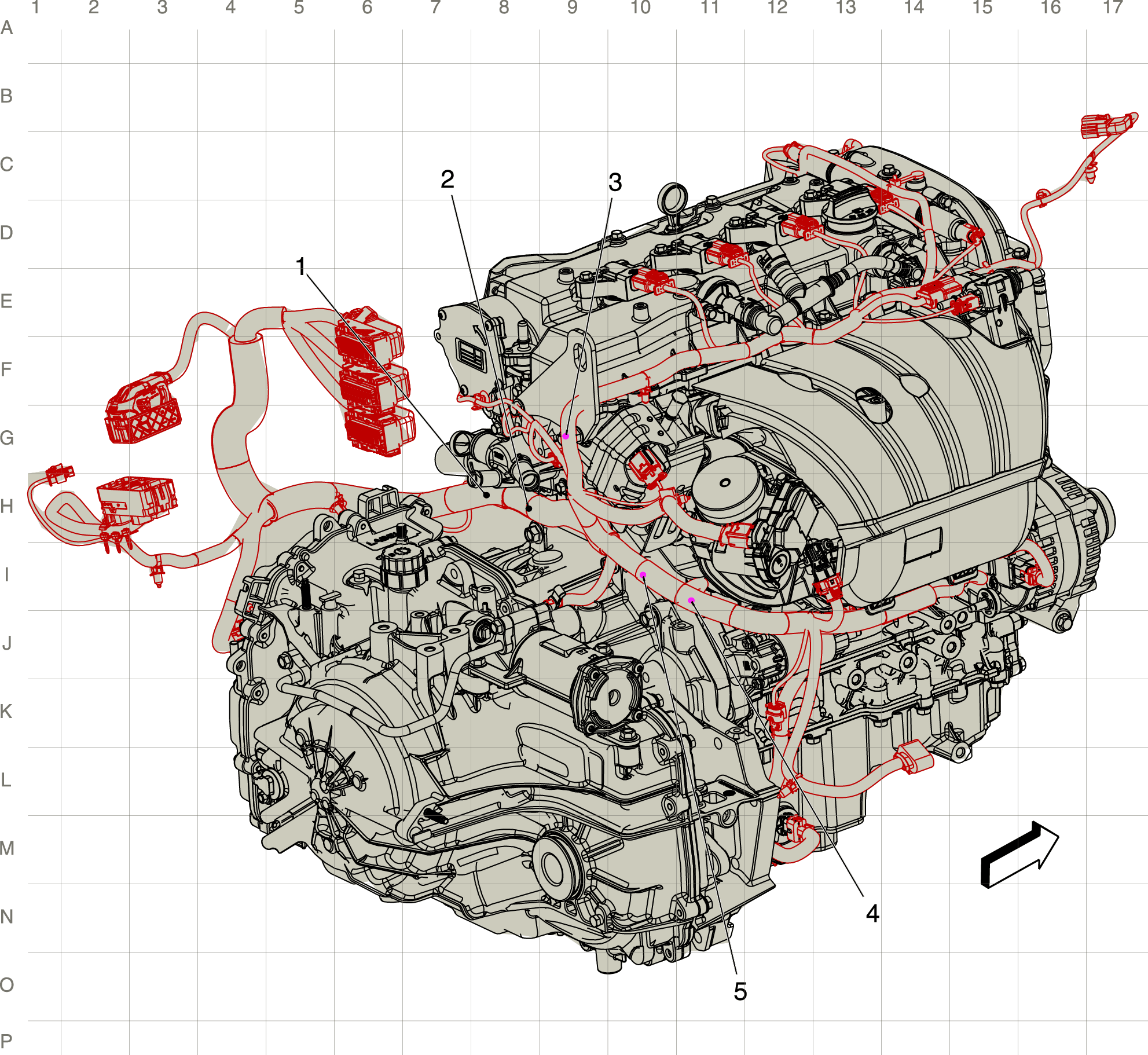

Engine Harness Routing - Right Front (LCV)
Engine Harness Routing - Right Front (LCV)
Courtesy of GENERAL MOTORS COMPANY
Items
1. J121 Engine Harness
2. J107 Engine Harness
3. J108 Engine Harness
4. J106 Engine Harness
5. J120 Engine Harness
