Engine Harness Routing - Left Rear (LCV)

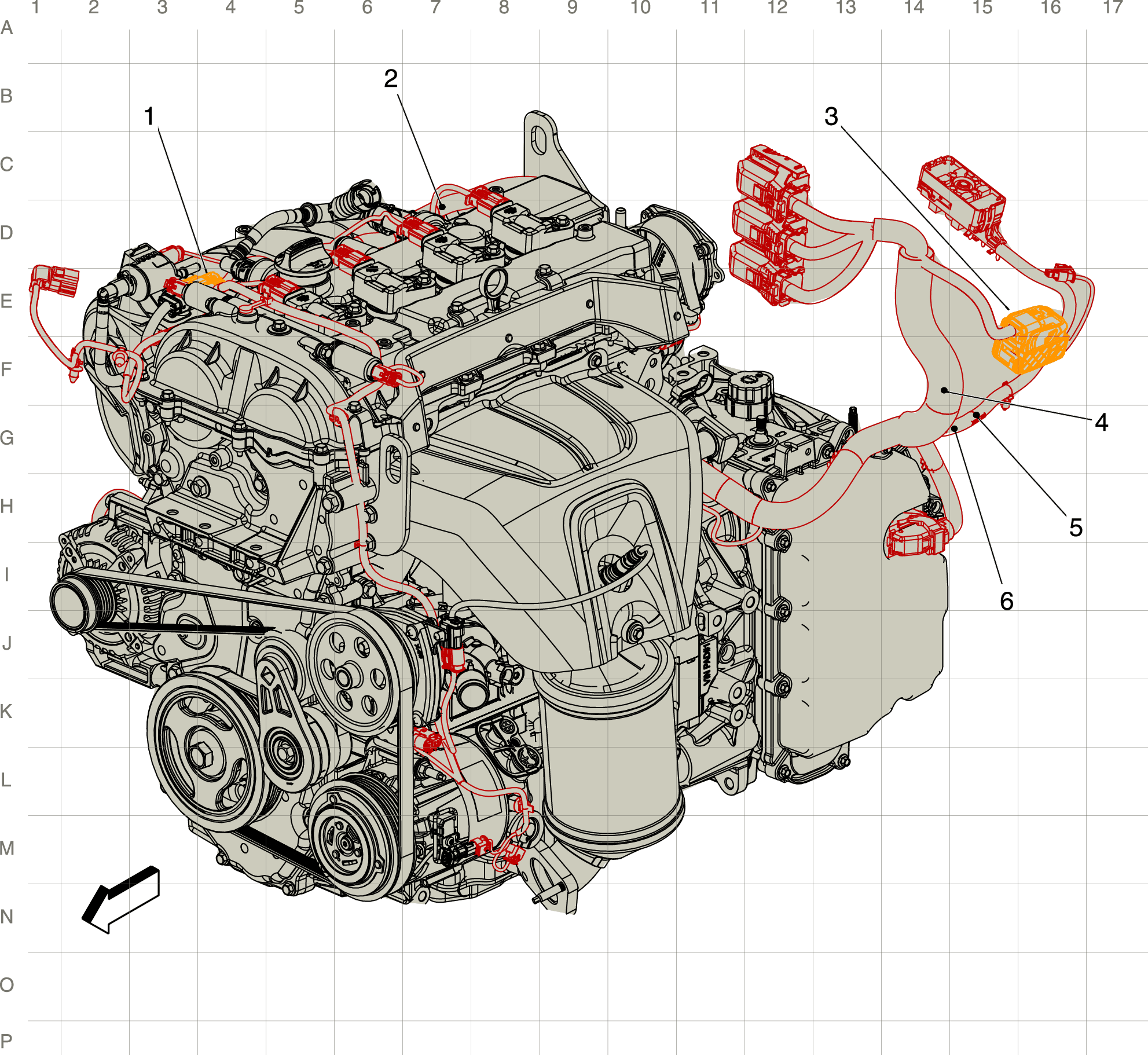

GM4144238Courtesy of GENERAL MOTORS COMPANY
Items
1. X160 Engine Harness to Fuel Rail Harness (12 Cavities) X160 Engine Harness to Fuel Rail Bank 1 Harness (LFX)X161 Engine Harness to Fuel Rail Bank 2 Harness (LCV)
2. J122 Engine Harness
3. X115 Engine Harness to Body Harness (40 Cavities) X115 Engine Harness to Body Harness
4. J104 Engine Harness
5. J103 Engine Harness
6. J139 Body Harness (KL9)
