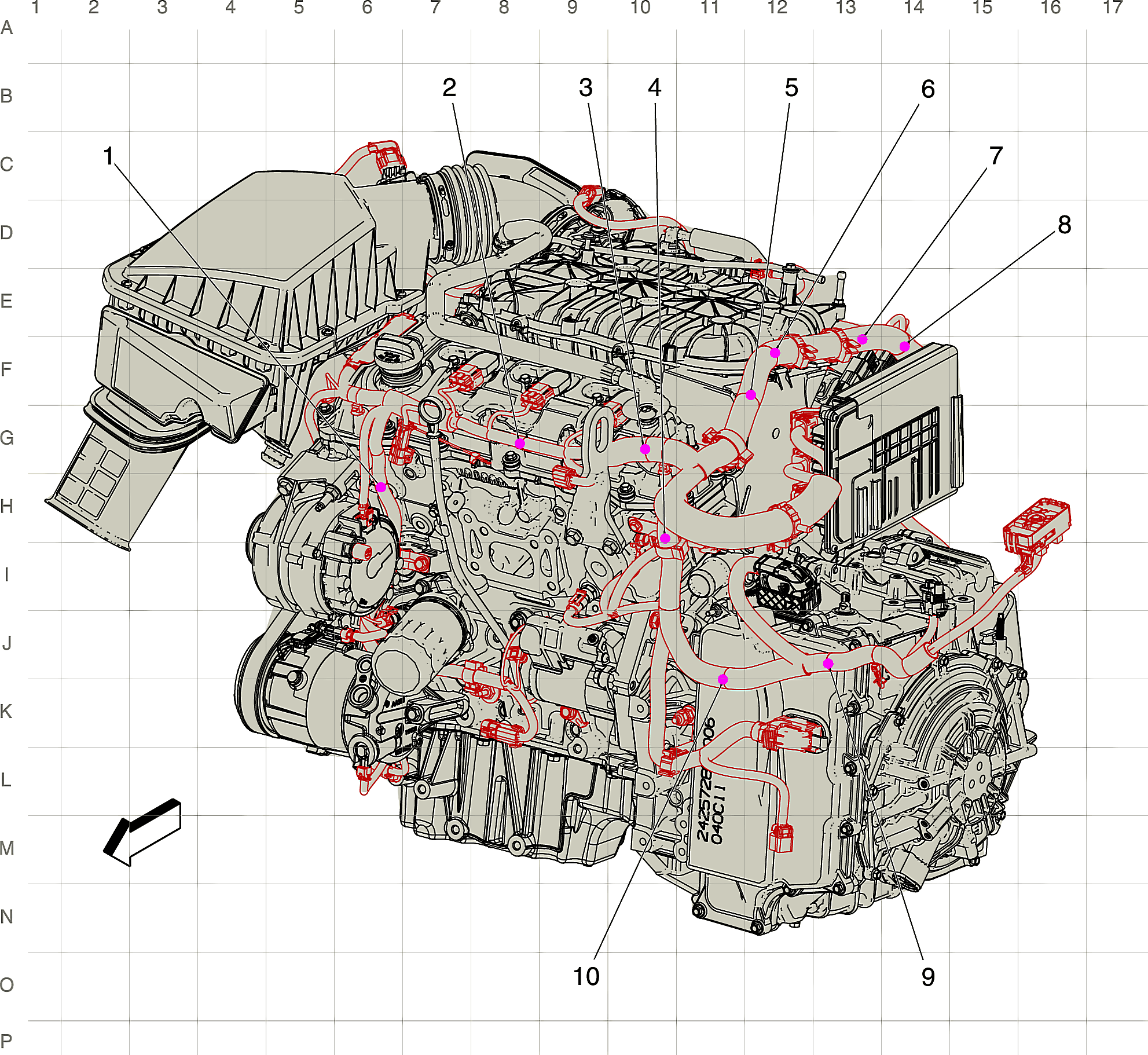

Engine Harness Routing - Left Front (LFX)

GM4163817Courtesy of GENERAL MOTORS COMPANY
Items
1. J120 Engine Harness
2. J122 Engine Harness
3. J119 Engine Harness
4. J123 Engine Harness
5. J121 Engine Harness
6. J133 Engine Harness
7. J108 Engine Harness
8. J107 Engine Harness
9. J106 Engine Harness
10. J104 Engine Harness
