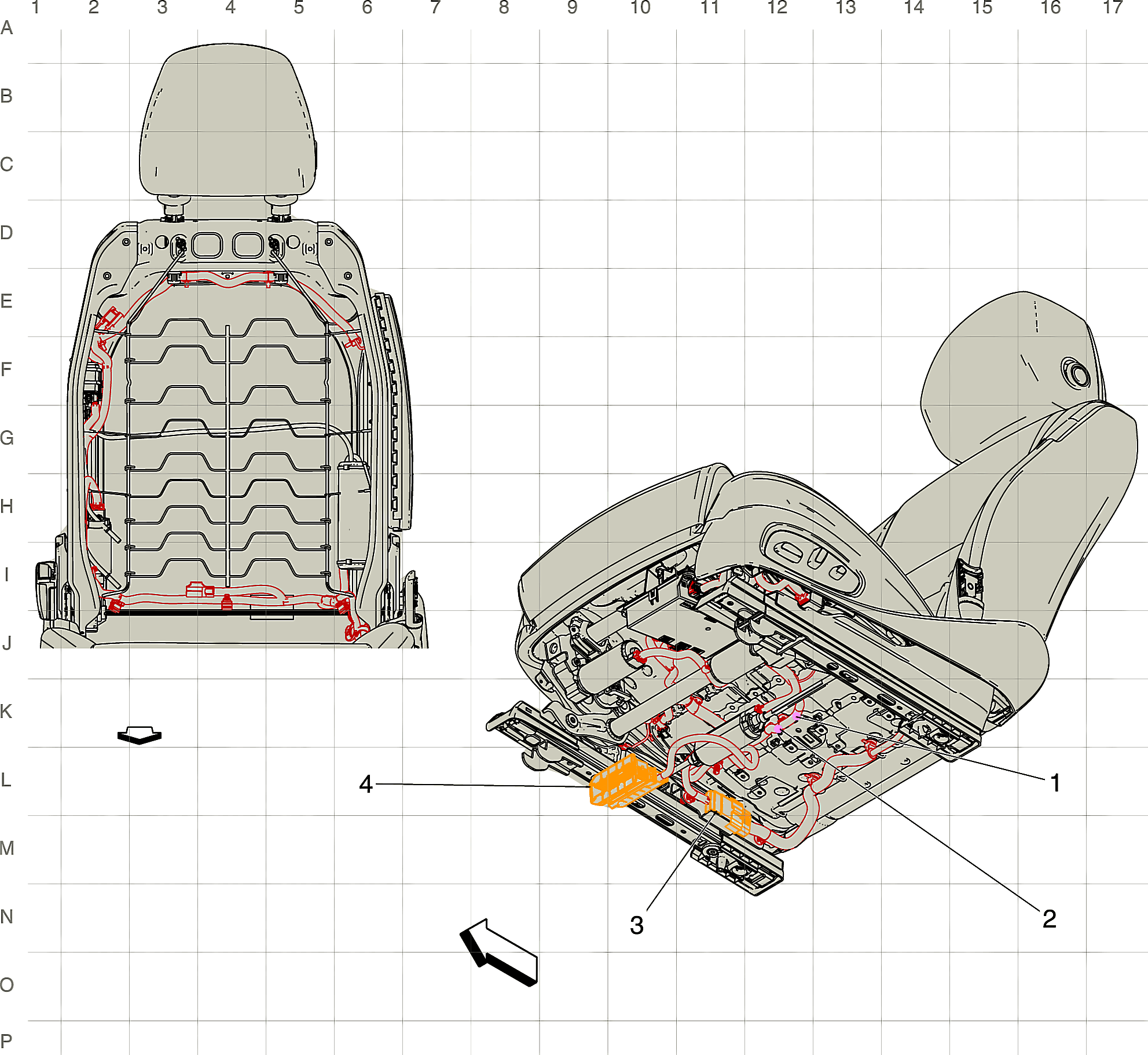

Driver Seat Harness Routing

GM2913066Courtesy of GENERAL MOTORS COMPANY
Items
1. J311 Driver Seat Cushion Harness (A45)
2. J310 Driver Seat Cushion Harness
3. X311 Driver Seat Back Harness to Driver Seat Cushion Harness (20 Cavities) X311 Driver Seat Back Harness to Driver Seat Cushion Harness (-KA1)X311 Driver Seat Back Harness to Driver Seat Cushion Harness (KA1)
4. X310 Body Harness to Driver Seat Cushion Harness (48 Cavities) X310 Body Harness to Driver Seat Cushion Harness
