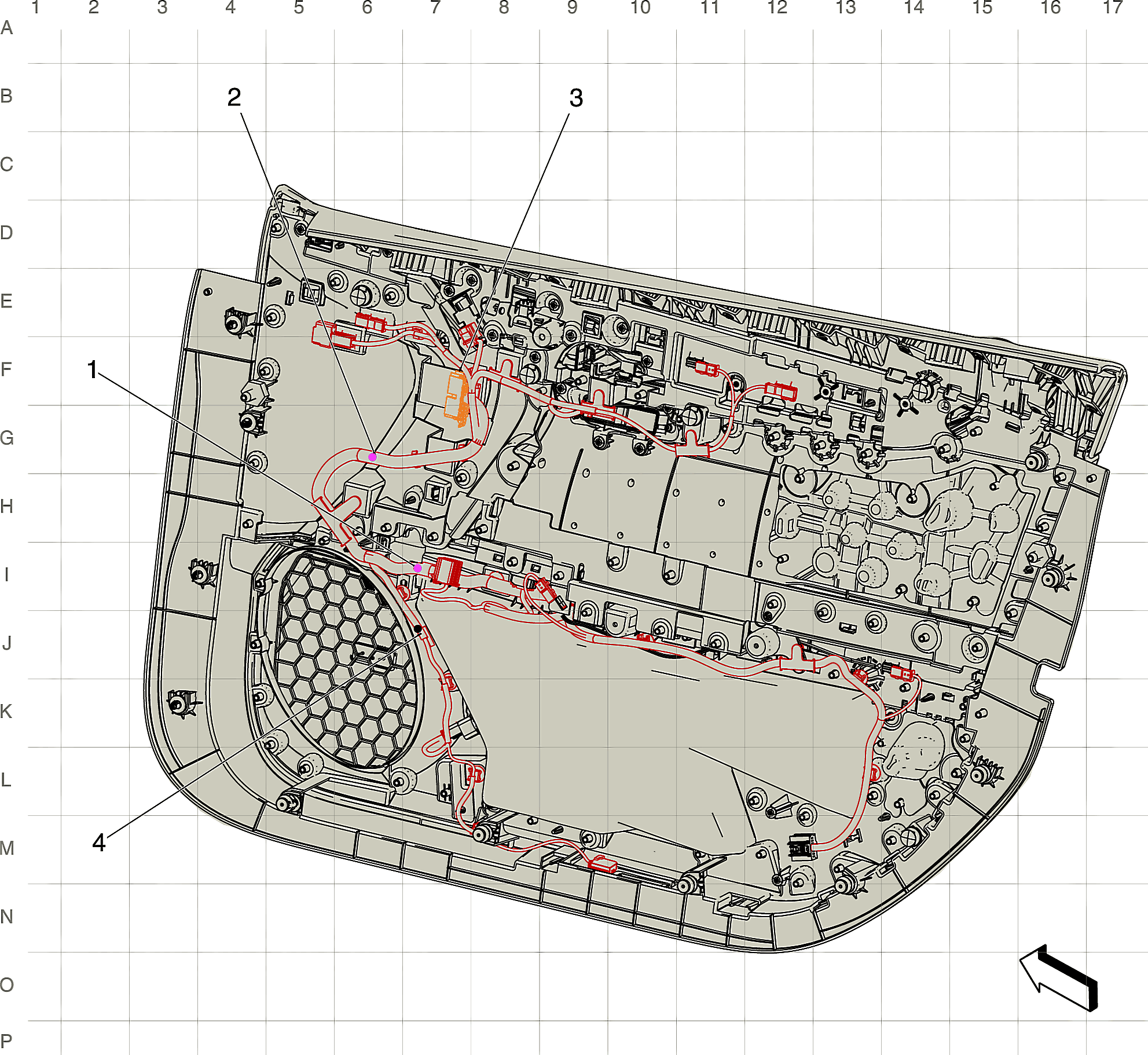

Driver Door Trim Harness Routing

GM2907576Courtesy of GENERAL MOTORS COMPANY
Items
1. J506 Driver Door Trim Harness (1LT or 1LZ)
2. J507 Driver Door Trim Harness
3. X505 Driver Door Harness to Driver Door Trim Harness (40 Cavities) X505 Driver Door Harness to Driver Door Trim Harness
4. J505 Driver Door Trim Harness
