Driver Door Harness Routing

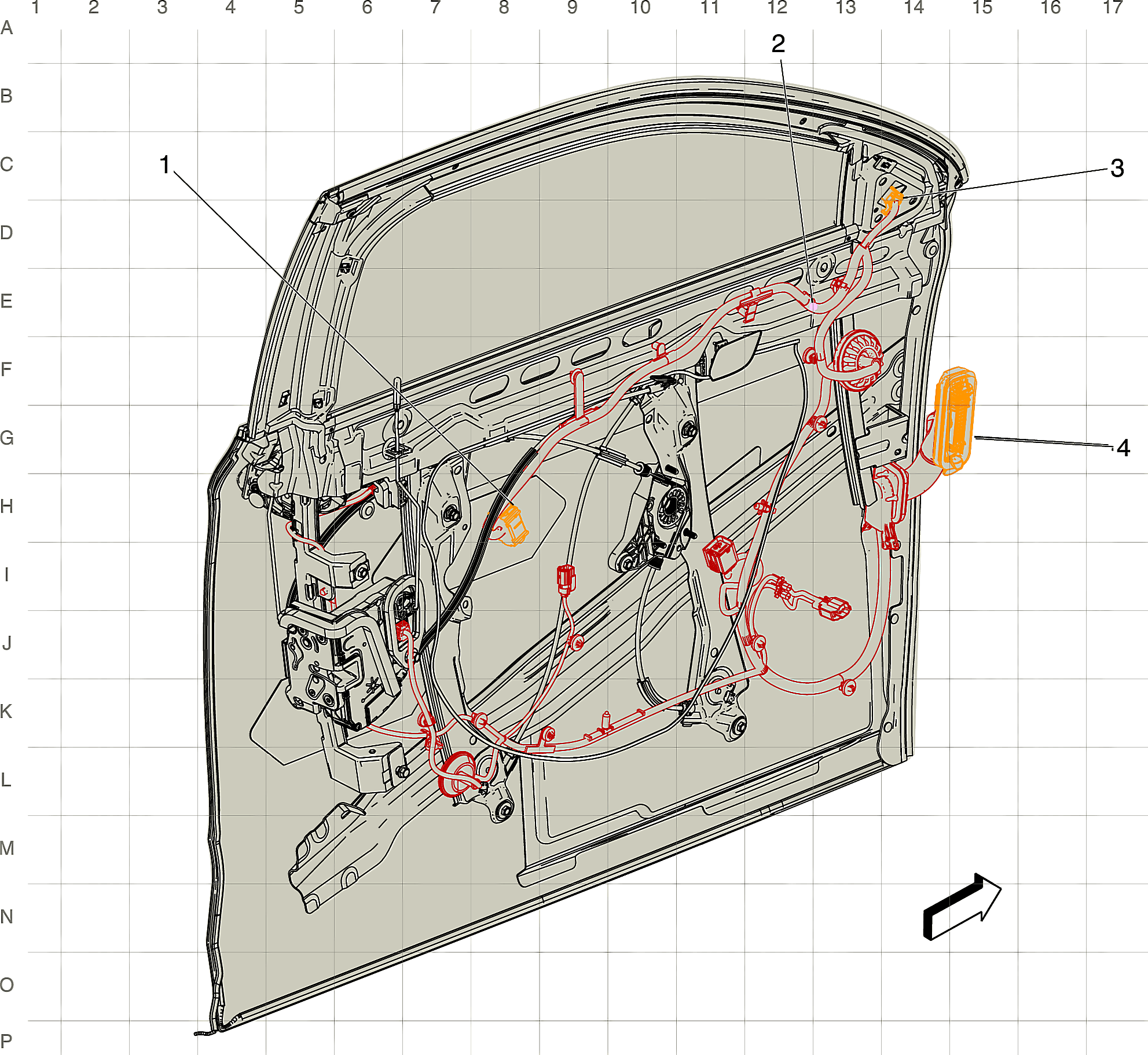

GM2907575Courtesy of GENERAL MOTORS COMPANY
Items
1. X505 Driver Door Harness to Driver Door Trim Harness (40 Cavities) X505 Driver Door Harness to Driver Door Trim Harness
2. J500 Driver Door Harness
3. X510 X510 Driver Door Harness to Outside Rearview Mirror - Driver Harness (18 Cavities) X510 Driver Door Harness to Outside Rearview Mirror - Driver Harness
4. X500 Driver Door Harness to Body Harness (41 Cavities) X500 Driver Door Harness to Body Harness
