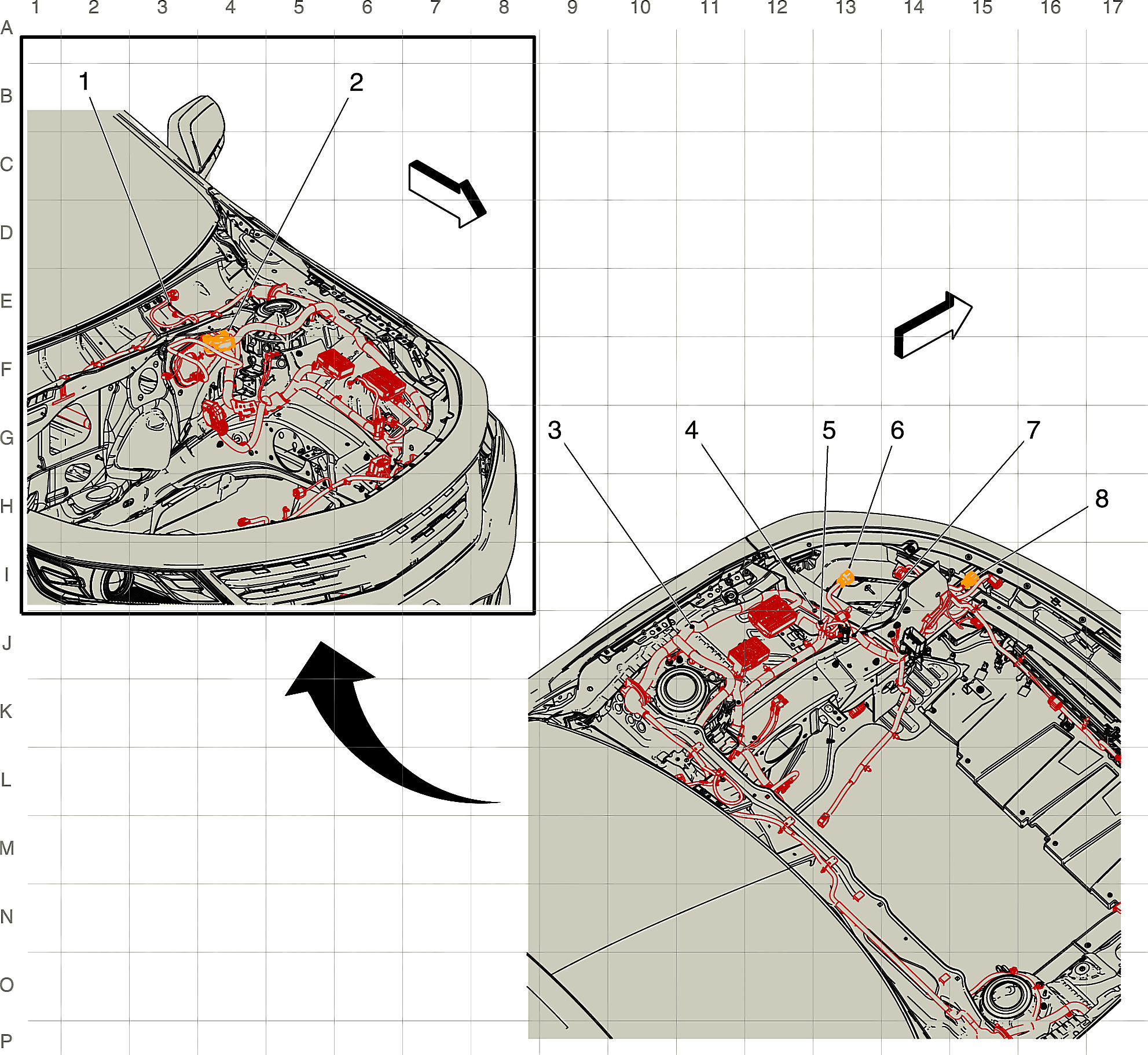

Body and Forward Lamp Harness Routing - Left Side of Engine Compartment

Courtesy of GENERAL MOTORS COMPANY

Items
1. J109 Forward Lamp Harness
2. X150 Forward Lamp Harness to Body Harness (40 Cavities) X150 Forward Lamp Harness to Body Harness
3. J100 Forward Lamp Harness
4. J151 Forward Lamp Harness
5. J150 Forward Lamp Harness
6. X110 Forward Lamp Harness to Left Headlamp Harness (8 Cavities) X110 Forward Lamp Harness to Left Headlamp Harness (T4A)X110 Forward Lamp Harness to Left Headlamp Harness (T4F)
7. J101 Forward Lamp Harness
8. X105 Forward Lamp Harness to Front Fascia Harness (8 Cavities) X105 Forward Lamp Harness to Front Fascia Harness (-9H8/VRI)X105 Forward Lamp Harness to Front Fascia Harness (9H8-VRI)X105 Forward Lamp Harness to Front Fascia Harness (VRI)
