Body Harness Routing - Right Side of Rear Compartment

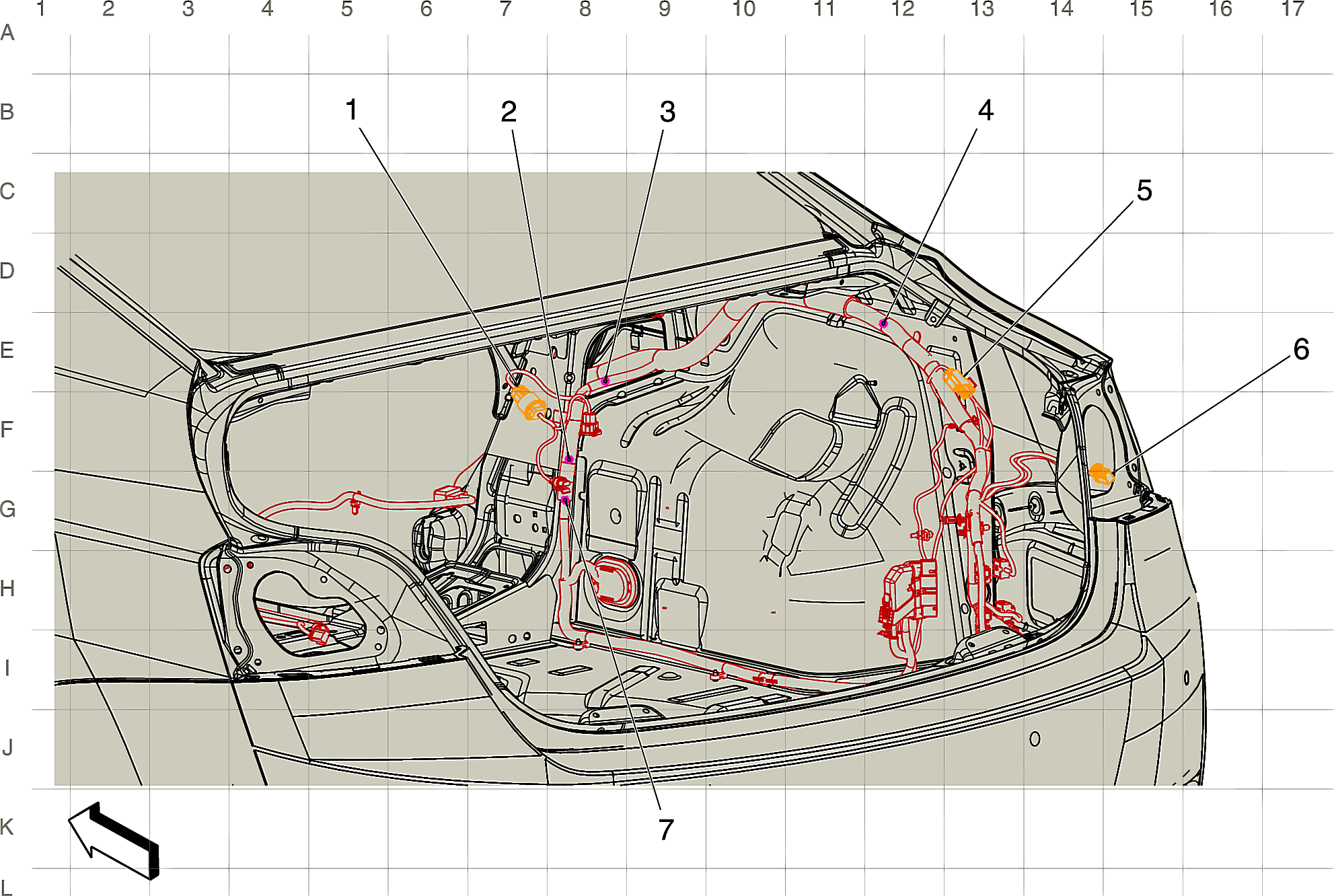

GM3789939Courtesy of GENERAL MOTORS COMPANY
Items
1. X351
2. J433 Body Harness (VRI with LKW)
3. J435 Body Harness (UQS)
4. J436 Body Harness
5. X495 Body Harness to Body Harness (2 Cavities) X495 Body Harness to Body Harness
6. X420 Body Harness to Right Tail Lamp Assembly Harness (4 Cavities) X420 Body Harness to Right Tail Lamp Assembly Harness
7. J434 Body Harness
