Body Harness Routing - Right Rear of Passenger Compartment

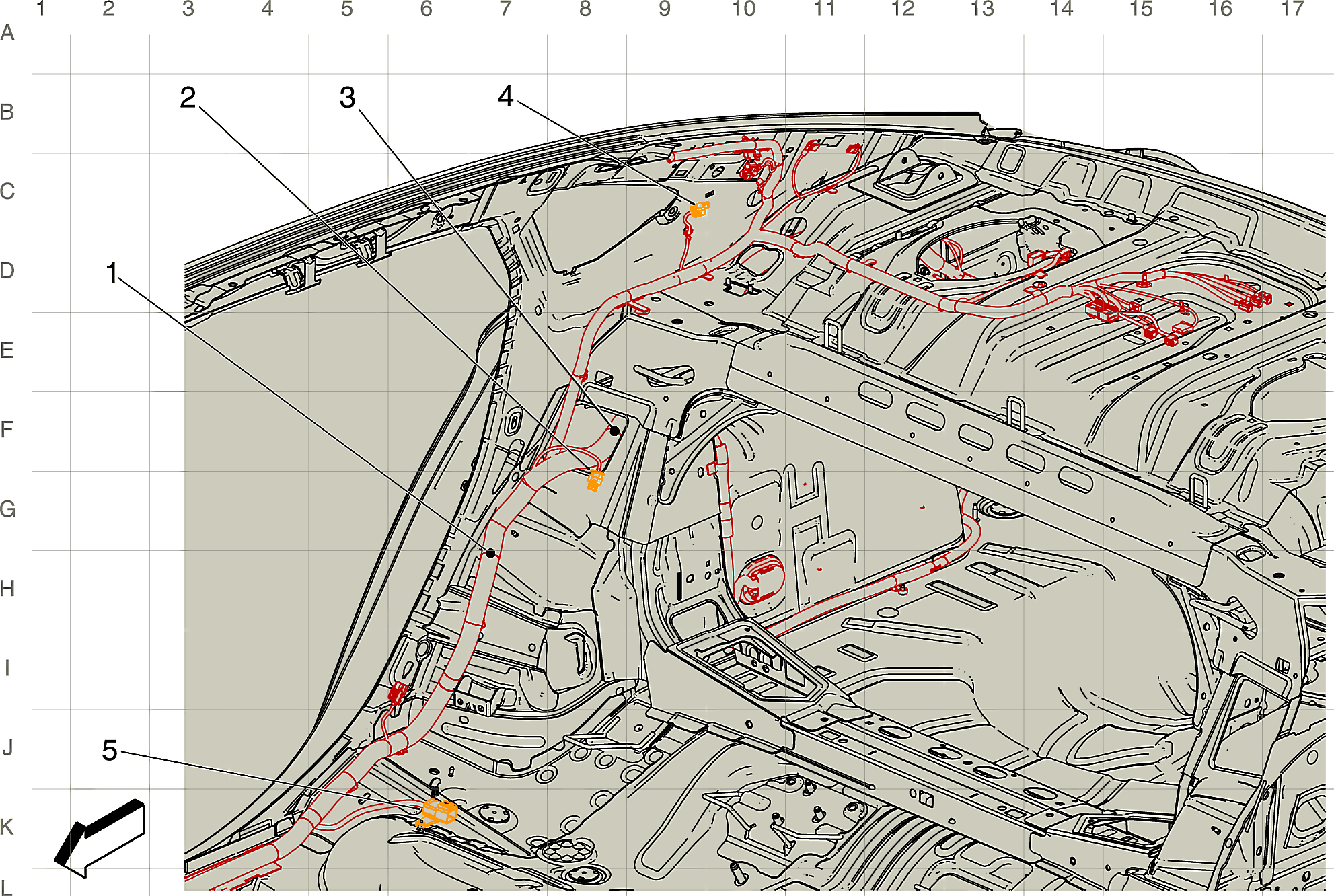

GM4586799Courtesy of GENERAL MOTORS COMPANY
Items
1.J380 Body Harness
2. X380 Body Harness to Right Rear Seat Side Airbag Harness (3 Cavities) X380 Body Harness to Right Rear Seat Side Airbag Harness
3. J432 Body Harness (UQS)
4. X340 Body Harness to Right Roof Rail Airbag Harness (2 Cavities) X340 Body Harness to Right Roof Rail Airbag Harness
5. X360 Rear Seat Harness to Body Harness X360 Rear Seat Harness to Body Harness
